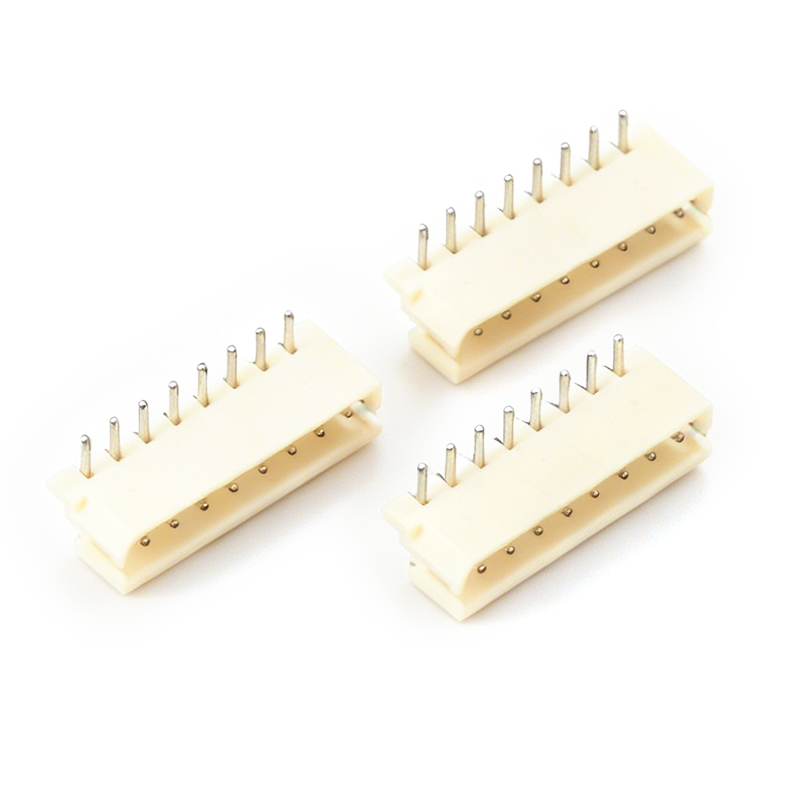

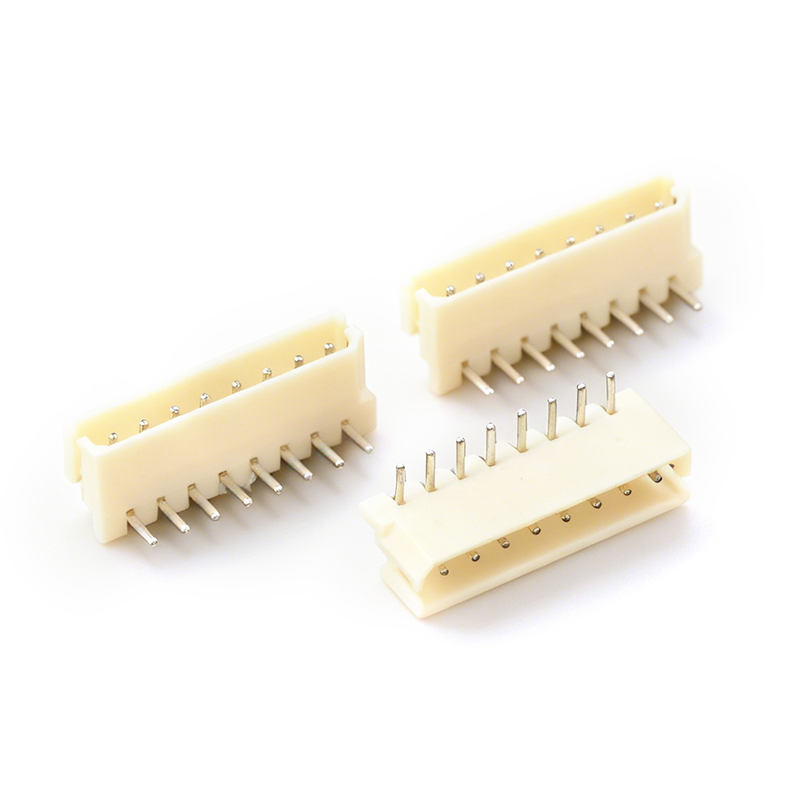

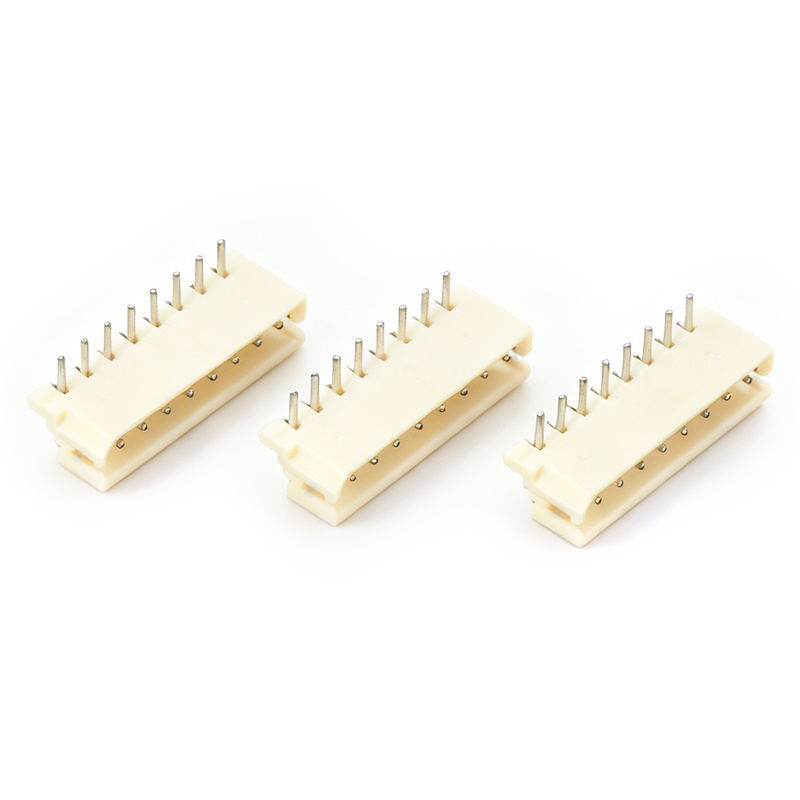

90 Degree MX2.5 Wafer Header Connector

The 90 Degree MX2.5 WAFER Header Connector is built for electronic products that need a clean side-entry connection on the PCB. Its right angle layout helps reduce vertical space usage, making it easier to fit into compact devices and narrow internal structures.

Item	Specification
Series	MX2.5 / 5264 / XP Right Angle Connector
Pitch	2.5 mm
Pin Count	2P–12P, Single Row
Orientation	90° Right Angle (DIP)
Housing Material	PA66 (Nylon66), UL94V-0
Contact Material	Phosphor Bronze / Brass
Plating	Matte Tin
Rated Voltage	250V AC/DC
Rated Current	3A per Pin
Contact Resistance	≤ 20 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstand Voltage	1000V AC / 1 min
Operating Temperature	-25℃ ~ +85℃
Mating Cycles	≥ 30 times
Compliance	RoHS, Halogen Free

This MX2.5 Right Angle Header is commonly used in display equipment, smart home products, industrial controllers, and communication devices. The 2.5mm pitch design keeps wiring organized while still allowing smooth signal transmission during long-term operation.

A lot of manufacturers choose this model because it is easy to solder and works well with automated assembly lines. The pins are arranged neatly, which helps improve installation efficiency and lowers the chance of connection errors during production.

As a reliable Wafer Connector solution, this product provides stable terminal contact and a firm connection after assembly. The durable housing material also helps the connector maintain good performance even in environments with frequent vibration or repeated plugging.

For customers looking for a compact connector wafer with practical installation advantages, this model offers a balance between space saving and stable electrical performance. It can also be used as an alternative option for projects related to wafer connector 2.54 mm applications where similar board layouts are required.
