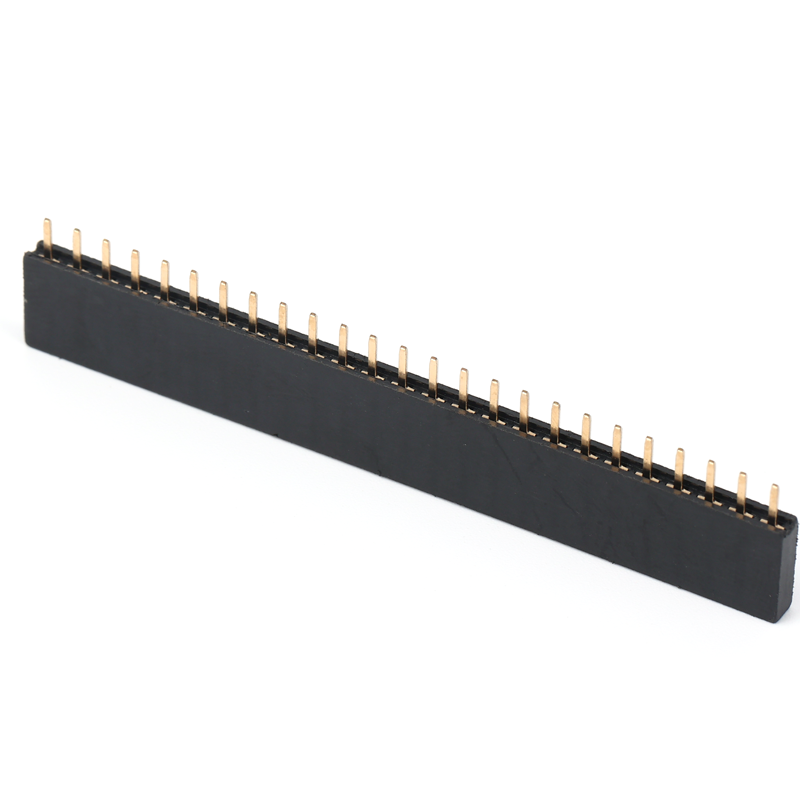

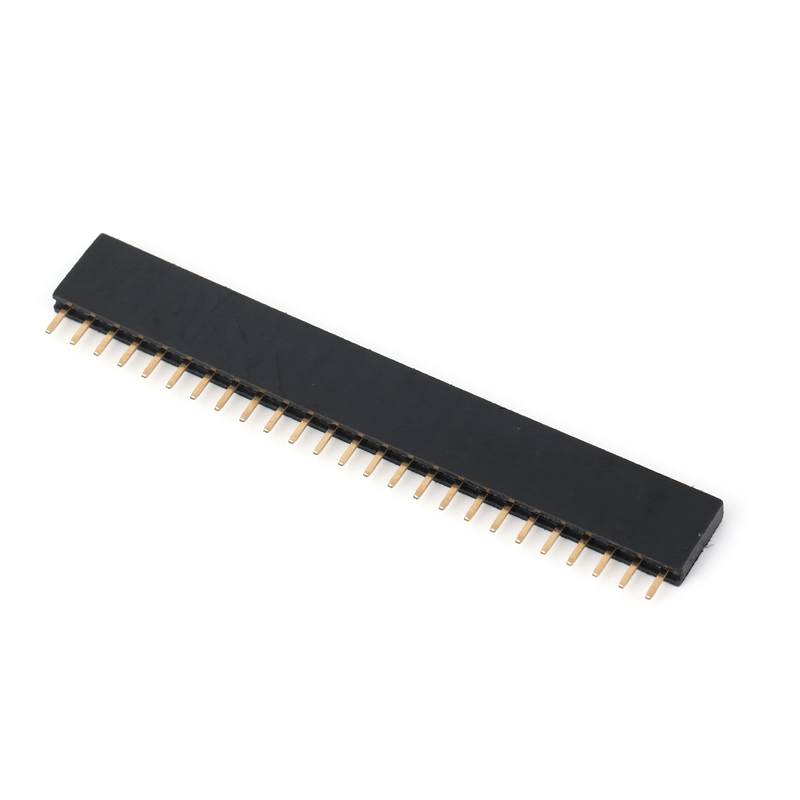

2.54mm Single Row Female Header 180 degrees

dgyzconn’s 2.54mm Single Row Female Header 180 degrees is an efficient choice for internal device connections, bringing reliable solutions to electronics, industrial computers, communication systems, and other fields. As a product of the Female Header series, its 180-degree straight-plug design combined with a single-row structure ensures stable signal transmission while enabling convenient installation in limited spaces, especially suitable for scenarios with specific wiring direction requirements.



This connector supports various soldering types, including SMT, straight, right-angle, J-type, and U-type, perfectly adapting to both automated patching production and manual assembly. With high-quality C2680 and C5191 terminals paired with black LCP (UL94V - 0) insulators, it operates stably with a 3A/pin rated current in harsh environments ranging from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, strictly limits the contact resistance to a maximum of 20mΩ, ensuring zero-loss signal transmission. The flexible 6 - 80 PIN options meet the connection needs of different devices and are highly compatible with Male And Female Header Pins and Female Header Pins. Certified by IATF16949, ISO9001, ISO14000 and RoHS-compliant, it comes in standard plastic tray + carton packaging. Offering flexible ODM and OEM customization services with adjustable colors, it meets diverse market demands and stands out as a star product in the 2.54 Mm Female Header category.

Attributes	Details
Application	Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc.
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Single-row, Double-row
Rated Current	3A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer on base plate ≥50u"
Pin Count	6 - 80 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable according to requirements
Service Types	ODM and OEM services available; color can be customized flexibly
