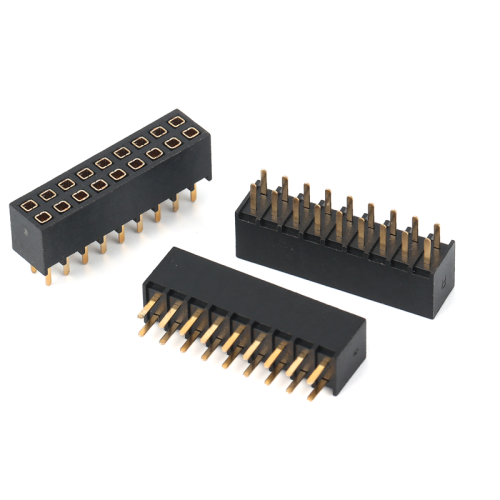

2.54mm Double row H6.8 180 degrees

The 2.54mm Double row H6.8 180 degrees by dgyzconn is a high-quality component for dual-row linear connections in electronic devices. With 2.54mm standard pitch, double-row design, 180-degree straight structure and 6.8mm height, it fits PCB layouts needing same-direction wiring with specific height requirements, widely used in smart control cabinet motherboards and precision measuring instrument interfaces. As a quality 2.54 Mm Pitch Female Header, it precisely mates with male headers for stable multi-signal transmission.

​

Its 180-degree straight design keeps the connection direction horizontal with the PCB, facilitating same-direction expansion. The 6.8mm height reserves more space for upper components, beneficial for complex wiring and heat dissipation. This structure matches 2.54 Mm Female Header installation needs, suitable for equipment with many components. The double row can transmit multiple different types of signals simultaneously. Gold-plated phosphor bronze terminals (9mΩ resistance, 5,000+ cycles) perfectly match Header Female 2.54 standards, outperforming ordinary connectors.​



The high-temperature resistant PA66 shell works stably at -40℃~105℃, meeting various usage requirements. Compared to traditional Solderless Headers, its soldered design ensures firmer connection, and the 180-degree structure has obvious advantages in same-direction connection, especially suitable for devices needing a large number of same-direction signal transmission. Whether for multi-signal connections in smart control cabinets or inter-board signal transmission in precision measuring instruments, this double row H6.8 180-degree connector is preferred for its stable performance and precise adaptability.
