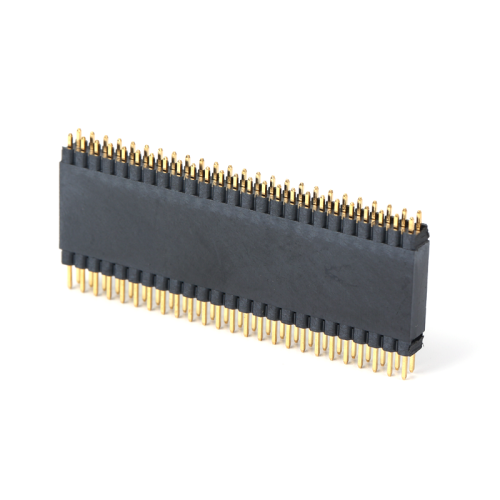

Dual Row Pin Header LCP Housing 2.54mm

The 2.54mm Dual Row Pin Header with 20.0mm Height is specifically engineered to meet demanding applications requiring extended pin length and reliable board-to-board or board-to-cable connections. Featuring a dual row configuration with a 2.54 mm pitch, this Pin Header is ideal for industrial computers, communication systems, and embedded electronics where extra clearance is necessary for cable management or component spacing. The high 20.0 mm profile provides flexibility in system design, allowing seamless integration with connectors or cables positioned above the PCB surface. Constructed with premium copper alloy pins plated with gold flash, it ensures excellent electrical conductivity and long-term durability. The black LCP housing not only offers robust mechanical support but also complies with UL94V-0 standards for flame retardancy, ensuring safety and reliability in high-performance environments.



At dgyzconn, we pride ourselves on our ability to deliver customized Pin Header Connectors tailored to the unique requirements of our clients. For this 2.54 mm dual row pin header with extended height, we offer flexible pin counts, plating options, and packaging solutions that align perfectly with your manufacturing needs. Our strict quality assurance processes, backed by ISO9001 and IATF16949 certifications, guarantee consistent product excellence. With a strong focus on OEM and ODM services, dgyzconn supports your development from prototype to mass production, providing efficient lead times and competitive pricing. Choose dgyzconn as your trusted partner for premium Pcb Board Connectors and Pin Connector solutions designed to enhance the performance and reliability of your electronic assemblies.



Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
