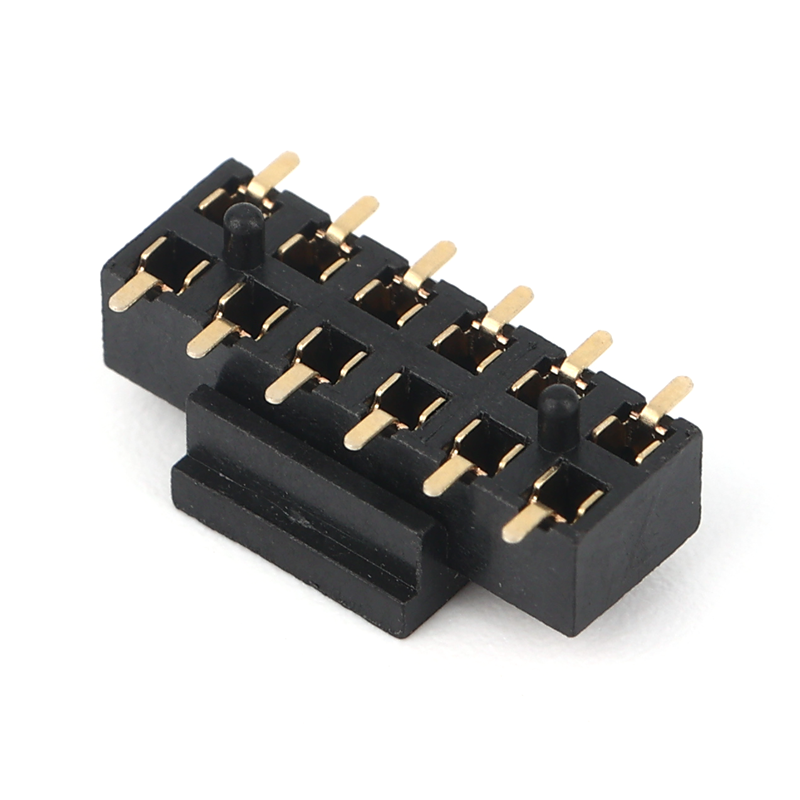

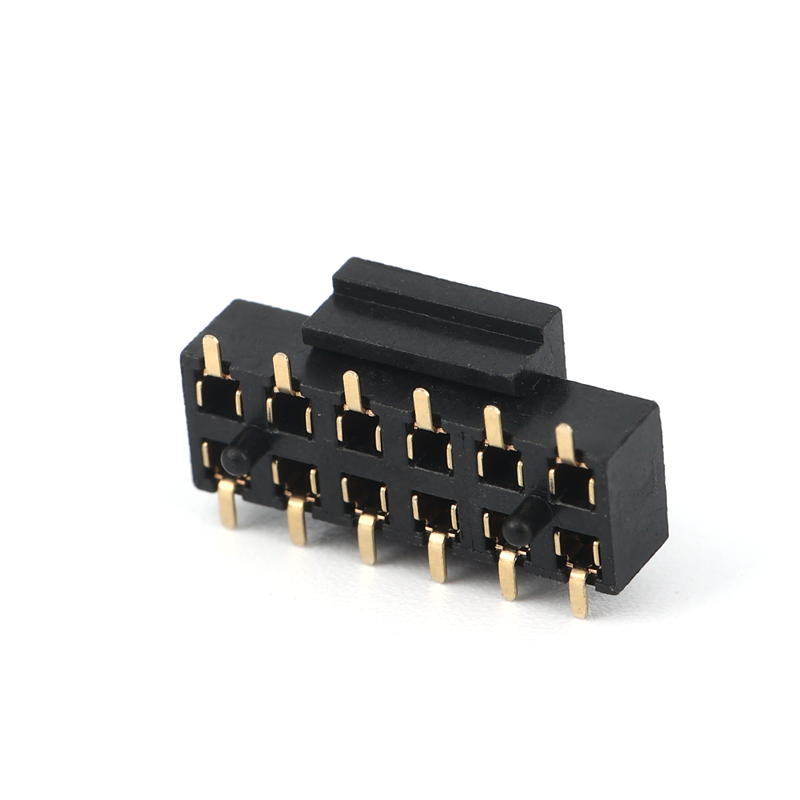

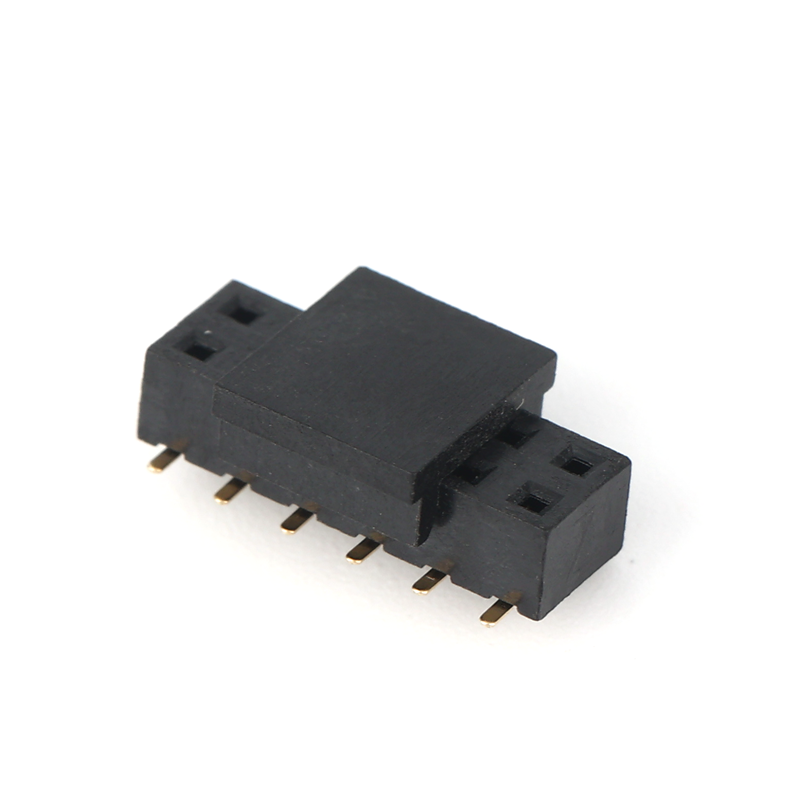

Female Header Double row With inner pillar

dgyzconn’s Female Header Double row With inner pillar is an excellent choice for internal device connections, widely used in electronics, industrial computers, and other fields. As an innovative product in the Female Header series, its unique inner pillar design enhances structural stability, while the double-row layout significantly improves signal transmission capabilities, making it suitable for both simple circuits and complex systems.



This connector supports various soldering types, including SMT, straight, right-angle, J-type, and U-type, perfectly meeting all kinds of installation needs, especially suitable for the right-angle installation scenarios of Right Angle Female Header. With terminals made of C2680 and C5191 materials, paired with black LCP (UL94V - 0) insulators, it operates stably with a 2A/pin rated current from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, limits the contact resistance to a maximum of 20mΩ, ensuring stable signal transmission. With 6 - 80 PIN options, it meets diverse requirements and is highly compatible with Male And Female Header Pins, 2.0 Mm Female Header, and Female Header Pins. Certified by ISO9001 and ISO14000, and RoHS-compliant, it comes in standard plastic tray + carton packaging, offering flexible ODM and OEM services with customizable colors.

Attributes	Details
Application	Internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Single-row, Double-row
Rated Current	2A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer ≥50u"
Pin Count	6~80 PIN
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard: plastic tray + carton; customizable
Service Types	ODM/OEM; color customization
