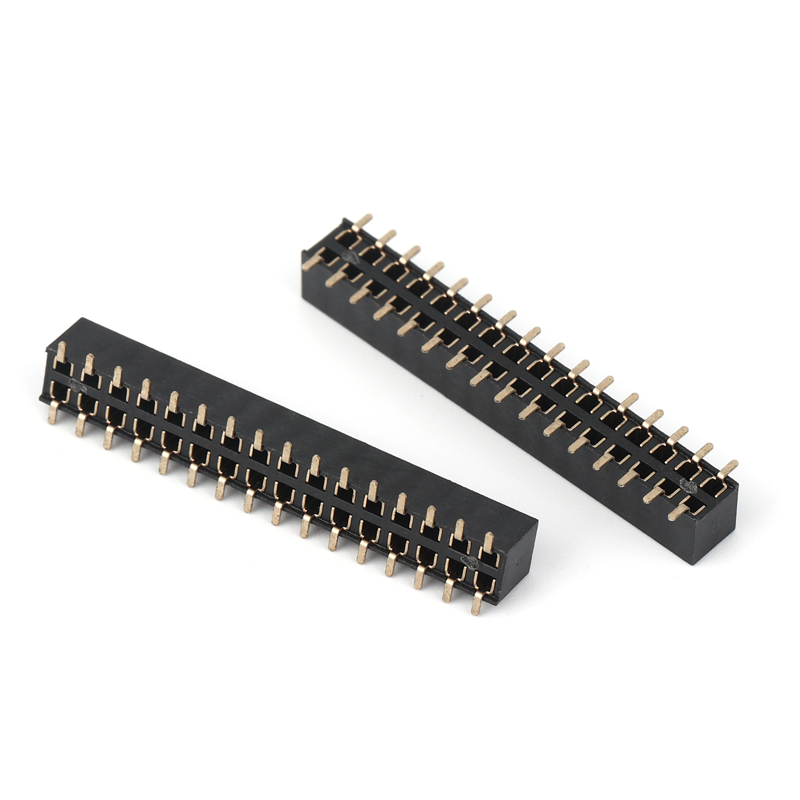

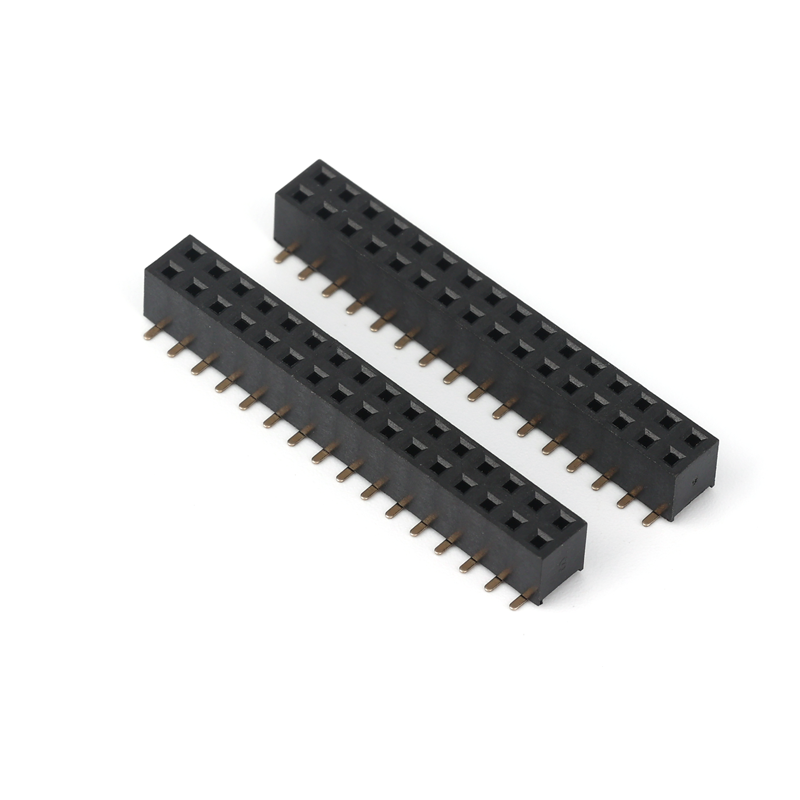

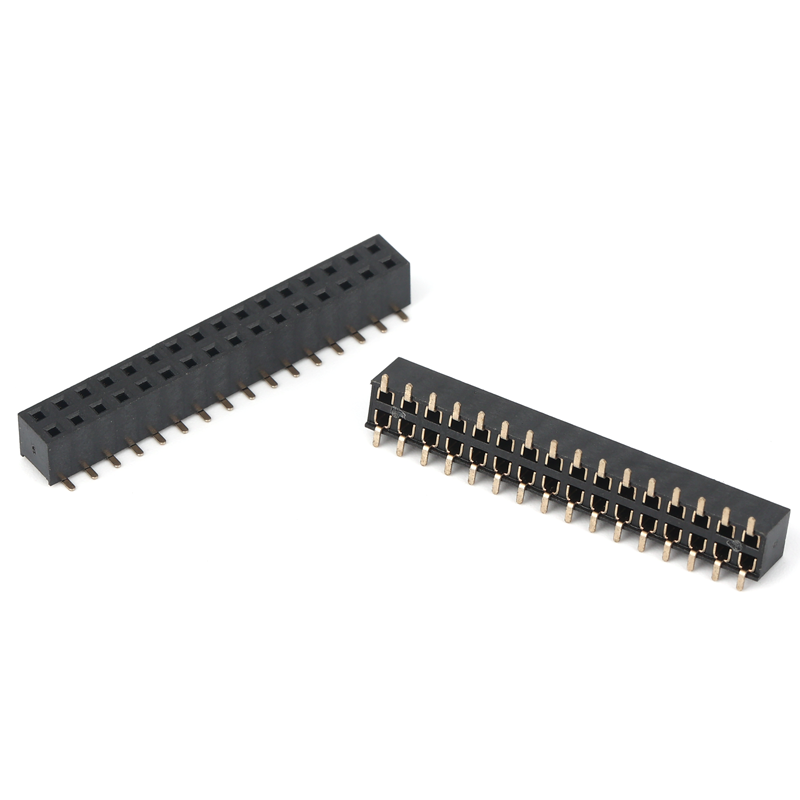

Female Header 2.0mm No pillar Double row

dgyzconn’s Female Header 2.0mm No pillar Double row is a high-quality solution tailored for internal device connections, widely used in electronics, industrial computers, and other fields. As part of the Female Header series, its pillar-free double-row design is sleek and compact, saving space while ensuring efficient signal transmission, making it an ideal choice for lightweight and high-performance connections.



This connector supports various soldering types, including SMT, straight, right-angle, J-type, and U-type, easily adapting to both regular circuit installations and special requirements similar to Right Angle Female Header. With terminals made of C2680 and C5191 materials, paired with black LCP (UL94V - 0) insulators, it operates stably with a 2A/pin rated current from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, limits the contact resistance to a maximum of 20mΩ, ensuring stable signal transmission. The 6 - 80 PIN configuration suits different device needs and is highly compatible with Male And Female Header Pins and Female Header Pins. Certified by ISO9001 and ISO14000 and RoHS-compliant, it comes in standard plastic tray + carton packaging. Offering flexible ODM and OEM services with customizable colors, it meets diverse market demands.

Attributes	Details
Application	Internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Single-row, Double-row
Rated Current	2A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer ≥50u"
Pin Count	6~80 PIN
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard: plastic tray + carton; customizable
Service Types	ODM/OEM; color customization
