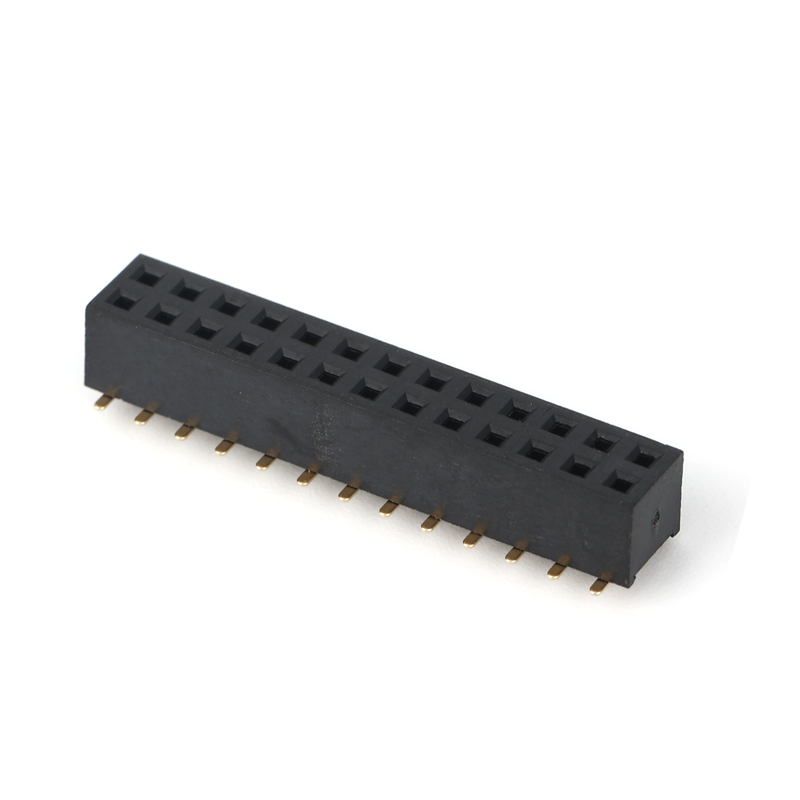

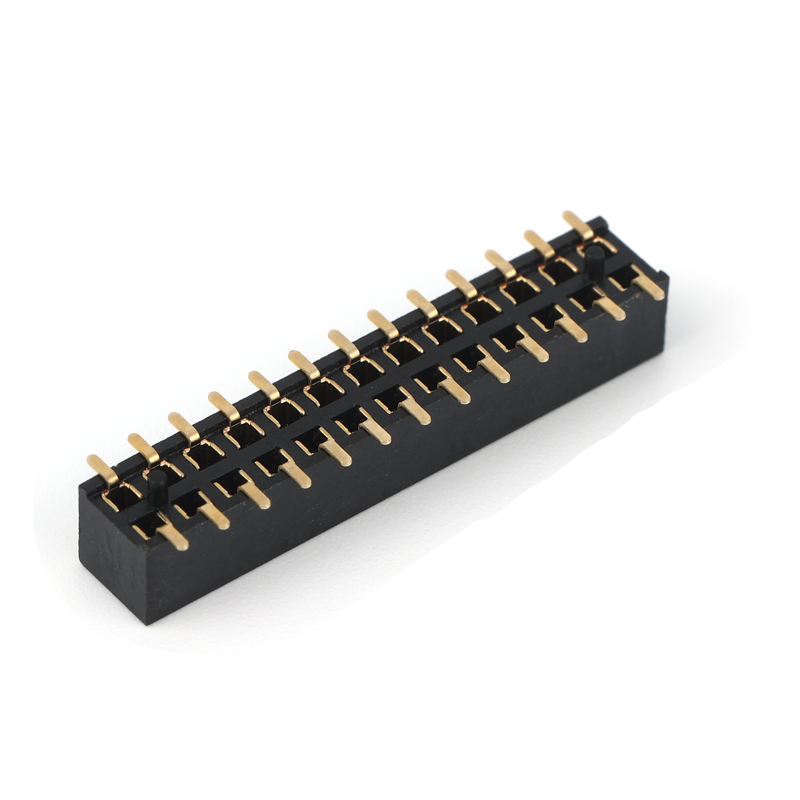

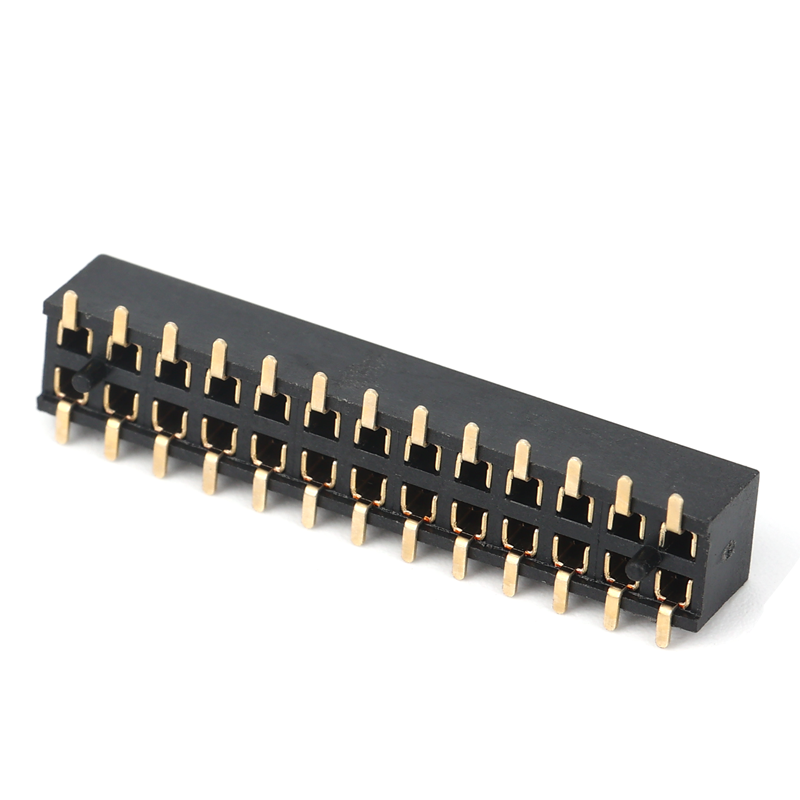

Female Header 2.0mm SMT With inner pillar

dgyzconn’s Female Header 2.0mm SMT With inner pillar is an optimal solution for precise internal device connections, designed for electronics, industrial computers, and communication systems. As an innovative model in the Female Header series, its built-in pillar design enhances plugging stability, combined with SMT patching technology to seamlessly integrate into high-density circuit boards, especially suitable for scenarios requiring high installation precision like Right Angle Female Header. Supporting multiple soldering types—straight, right-angle, J-type, U-type—it is compatible with 2.0 Mm Female Header standards, meeting automated patching and complex wiring needs.



Featuring C2680/C5191 high-conductivity copper terminals and black LCP (UL94V-0) insulators, the connector stably handles 2A/pin current from -40°C to +105°C, suitable for high-frequency signal transmission. The Gold Flash plating, combined with a ≥50u" nickel base, keeps contact resistance below 20mΩ, ensuring low-loss signal transmission in dense circuits. With 6-80 PIN options, it adapts to diverse applications from consumer electronics to industrial equipment and is highly compatible with Male And Female Header Pins and Female Header Pins. Certified by ISO9001, ISO14000, and RoHS-compliant, it comes in standard plastic tray + carton packaging, offering ODM/OEM customization with flexible color choices for reliable intelligent connectivity solutions worldwide.

Attributes	Details
Application	Internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Single-row, Double-row
Rated Current	2A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer ≥50u"
Pin Count	6~80 PIN
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard: plastic tray + carton; customizable
Service Types	ODM/OEM; color customization
