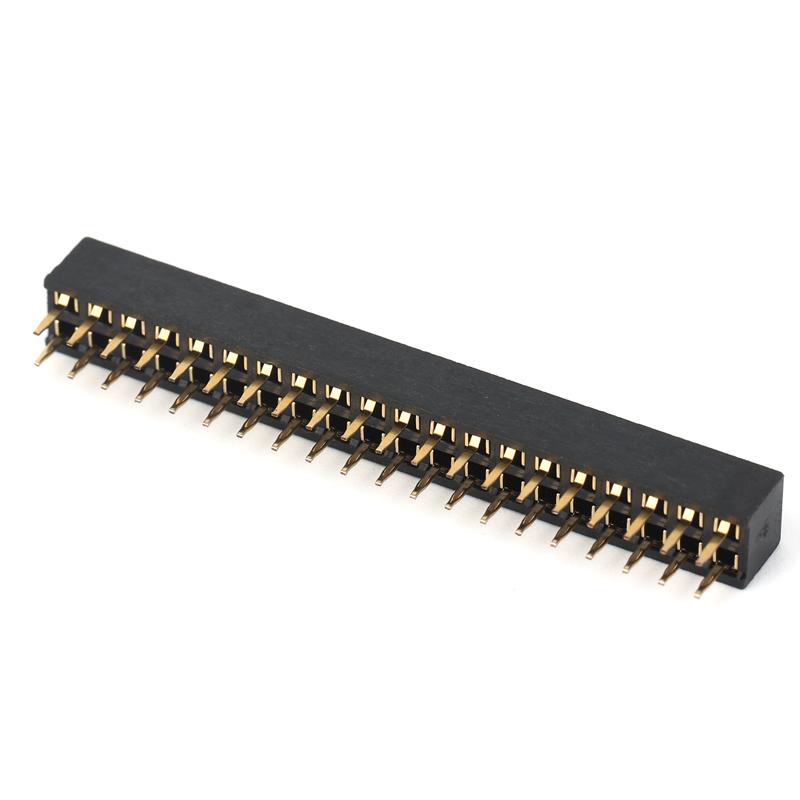

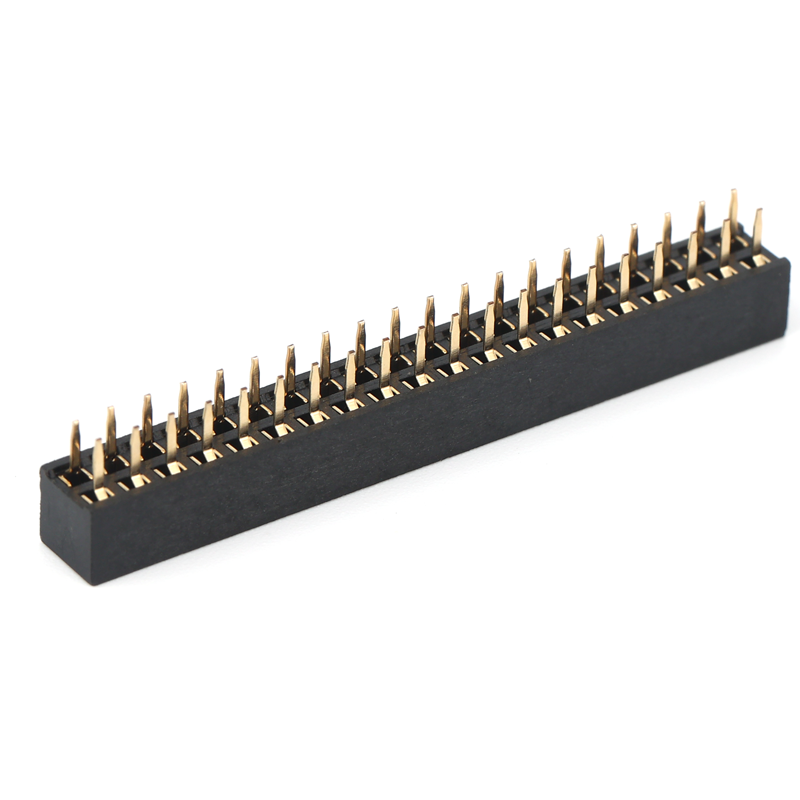

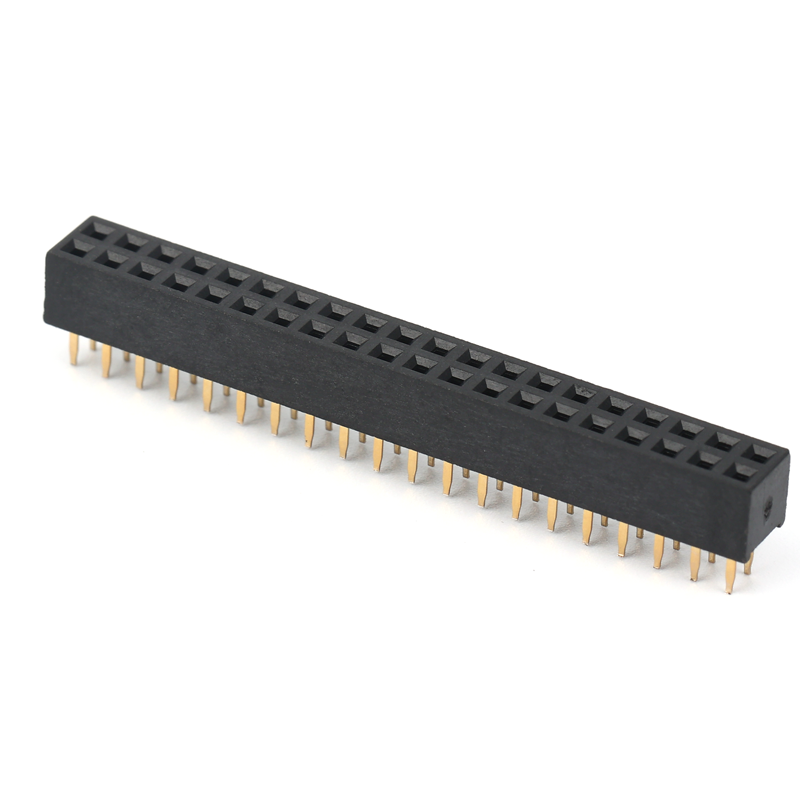

180 degrees Female Header 2.0mm Double row

dgyzconn’s 180 degrees Female Header 2.0mm Double row is an efficient and reliable choice for internal device connections, widely applicable to electronics, industrial computers, communication systems, and more. As a core product of the Female Header series, its 180-degree straight-plug design combined with a double-row structure not only saves space but also significantly improves signal transmission efficiency, making it an ideal solution for high-density wiring scenarios.



This connector supports various soldering types, including SMT, straight, right-angle, J-type, and U-type, perfectly meeting both regular installations and special requirements similar to Right Angle Female Header. With high-quality C2680 and C5191 terminals paired with black LCP (UL94V - 0) insulators, it operates stably with a 2A/pin rated current in harsh environments ranging from -40°C to +105°C. The Gold Flash plating, combined with a ≥50u" nickel base layer, strictly limits the contact resistance to a maximum of 20mΩ, ensuring stable signal transmission. The flexible 6 - 80 PIN options meet the connection needs of different devices and are highly compatible with components such as Male And Female Header Pins and Female Header Pins. Certified by ISO9001 and ISO14000 and RoHS-compliant, it comes with standard plastic tray + carton packaging. Offering flexible ODM and OEM customization services with adjustable colors, it safeguards the internal connections of various devices.

Attributes	Details
Application	Internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Single-row, Double-row
Rated Current	2A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer ≥50u"
Pin Count	6~80 PIN
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard: plastic tray + carton; customizable
Service Types	ODM/OEM; color customization
