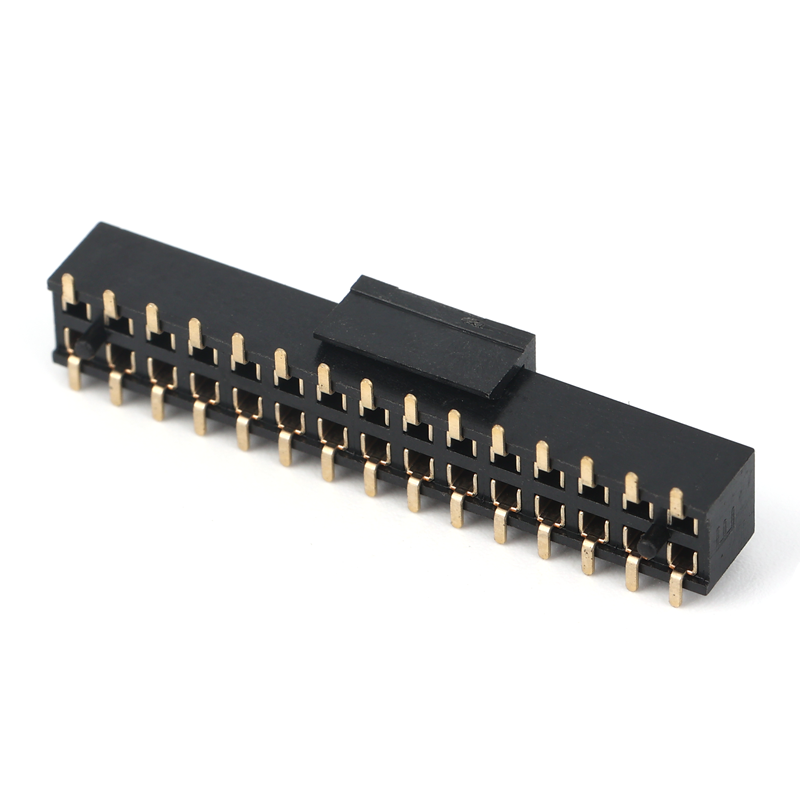

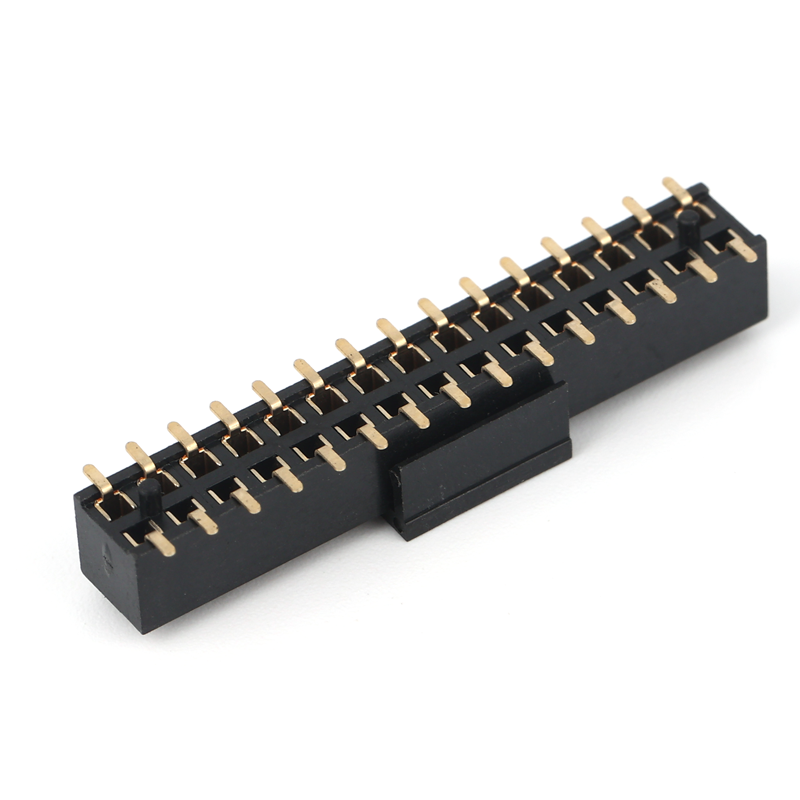

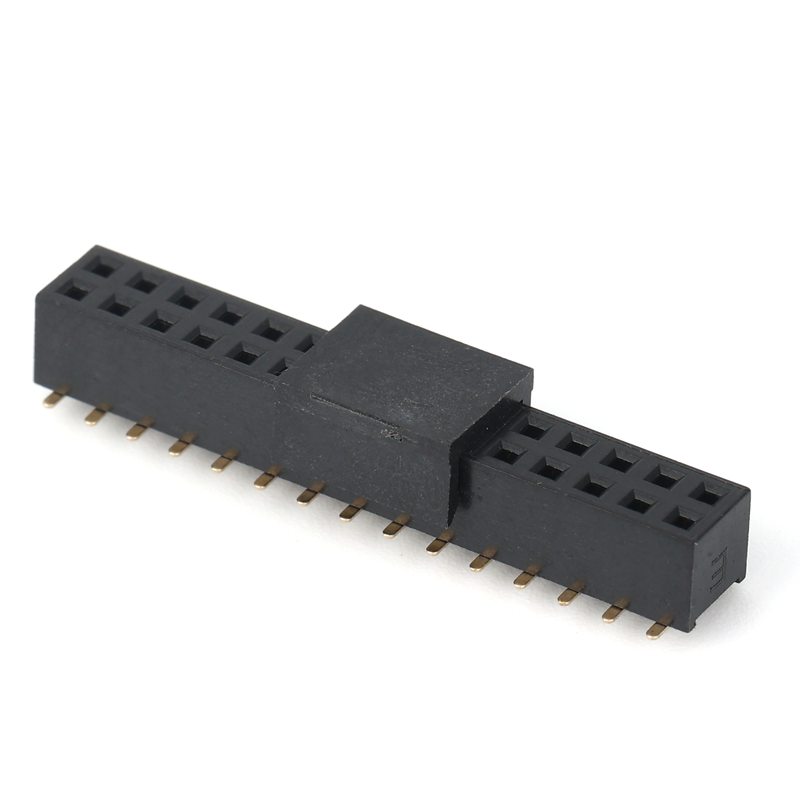

Female Header 2.0mm Capping With inner pillar

dgyzconn’s Female Header 2.0mm Capping With inner pillar is an innovative solution for protected internal device connections, designed for electronics, industrial computers, and communication systems. As a model in the Female Header series that combines structural strength and protection, its unique capping design with an inner pillar effectively prevents dust and foreign matter intrusion while enhancing plugging stability, making it ideal for high-protection scenarios like Right Angle Female Header. Supporting multiple soldering types—SMT, straight, right-angle—it is compatible with 2.0 Mm Female Header standards, adapting to automated patching and complex environment installations.



Featuring C2680/C5191 high-conductivity copper terminals and black LCP (UL94V-0) insulators, the connector stably handles 2A/pin current from -40°C to +105°C, suitable for high-frequency signal transmission. The Gold Flash plating, combined with a ≥50u" nickel base, keeps contact resistance below 20mΩ, ensuring low-loss signal transmission in harsh environments. With 6-80 PIN options, it adapts to diverse applications from medical equipment to industrial control and is highly compatible with Male And Female Header Pins and Female Header Pins. Certified by ISO9001, ISO14000, and RoHS-compliant, it comes in standard plastic tray + carton packaging, offering ODM/OEM customization with flexible color choices for safe and reliable industrial-grade connectivity solutions worldwide.

Attributes	Details
Application	Internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Single-row, Double-row
Rated Current	2A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer ≥50u"
Pin Count	6~80 PIN
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard: plastic tray + carton; customizable
Service Types	ODM/OEM; color customization
