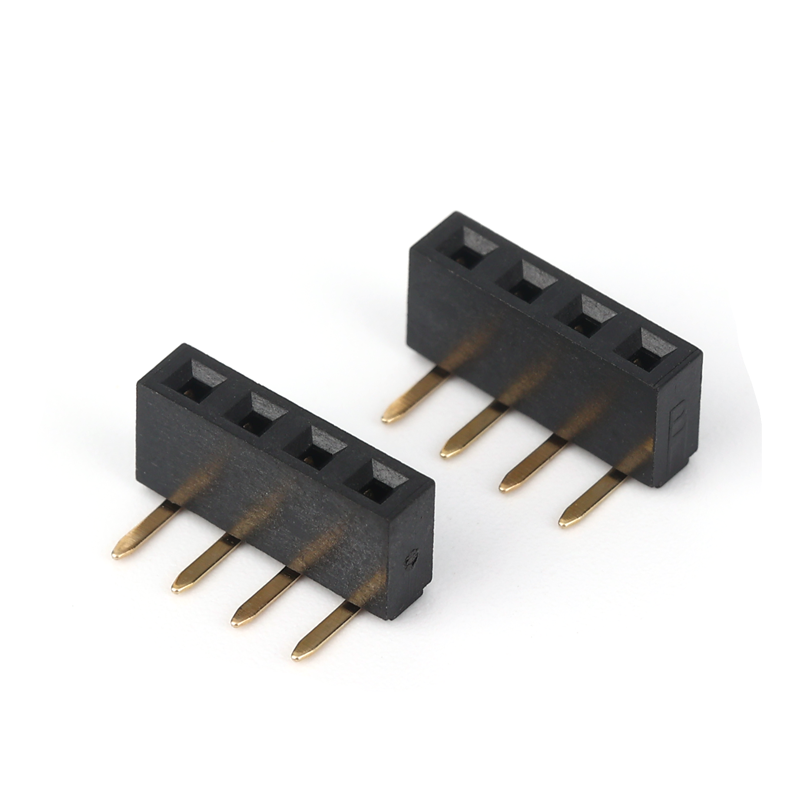

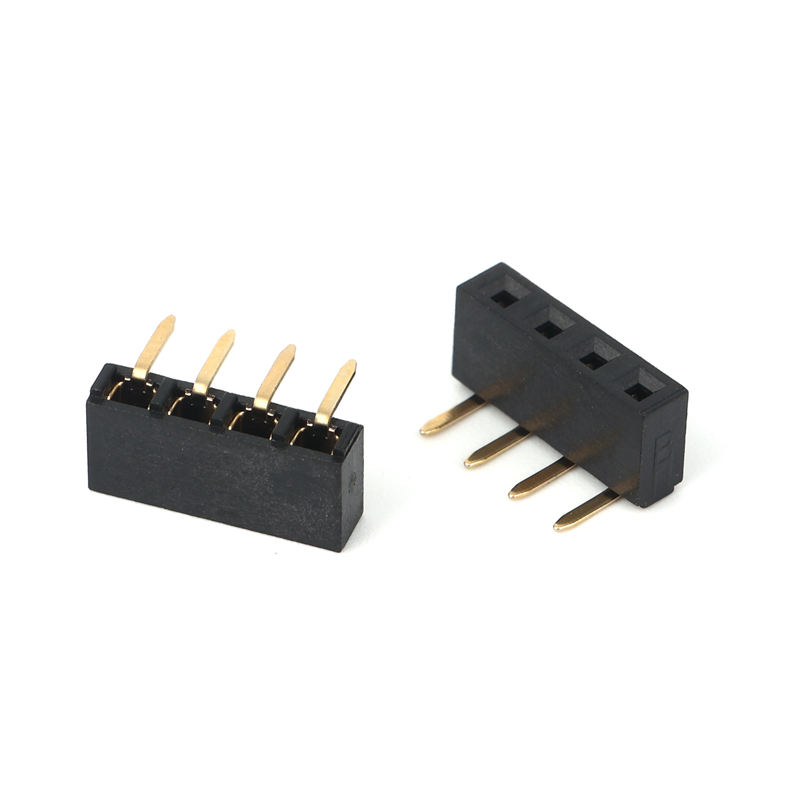

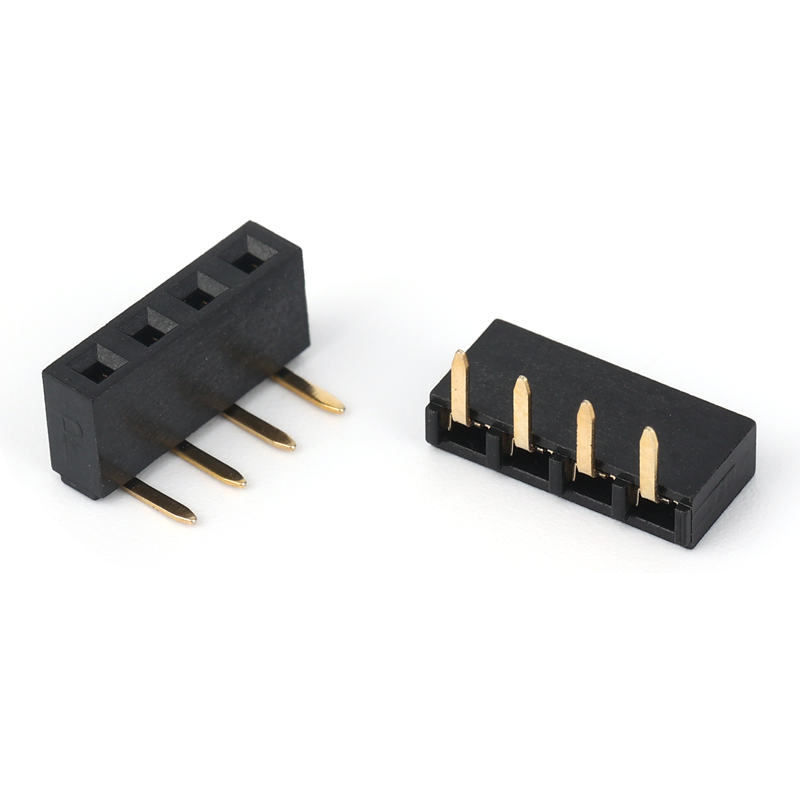

The 2.54mm Single Row Female Header 90 degrees by dgyzconn is a practical component for turning female connections in electronic devices. With 2.54mm standard pitch, single-row design and 90-degree angle, it fits PCB layouts requiring side-mounted female headers, widely used in development board expansion interfaces and small instrument control panels. As a quality 2.54 Mm Pitch Female Header, it precisely mates with corresponding male headers for stable signal transmission.

Its 90-degree angle makes the female interface perpendicular to PCBs, saving front space. This structure matches 2.54 Mm Female Header installation features, enabling flexible wiring in compact devices. The single-row layout suits single-type signal transmission. Tin-plated brass terminals (15mΩ resistance, 3,000+ cycles) outperform ordinary female headers, perfectly matching Header Female 2.54 standards.

The high-temperature PA66 shell works at -40℃~105℃. Compared to traditional Solderless Headers, its soldered design ensures firmer connection, and the 90-degree structure enhances installation flexibility, Especially suitable for devices that require turning and docking. It’s preferred for development board expansion and small device signal transfer due to precise adaptability and stable performance.

Attributes	Details
Application	Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc.
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Single-row, Double-row
Rated Current	3A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer on base plate ≥50u"
Pin Count	6 - 80 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable according to requirements
Service Types	ODM and OEM services available; color can be customized flexibly
