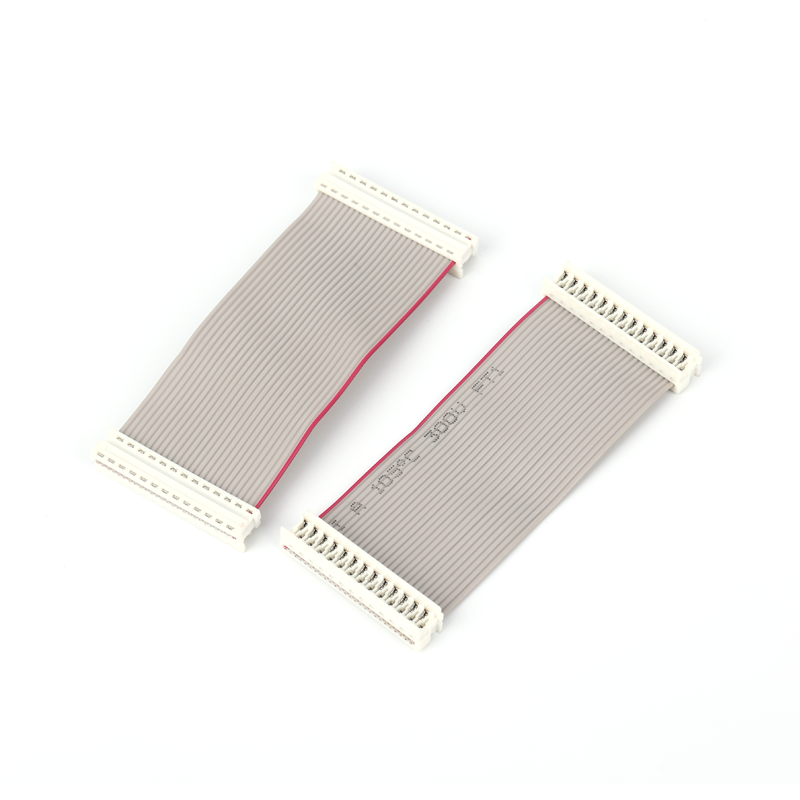

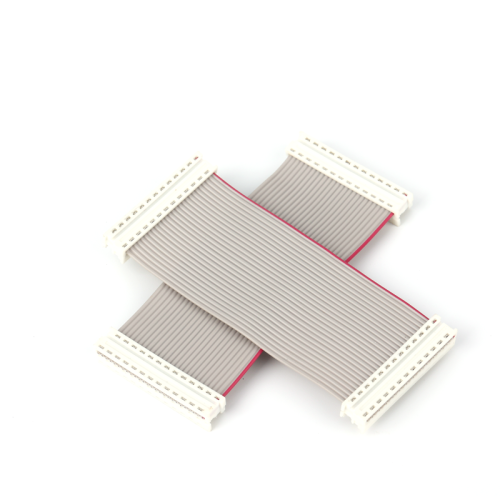

1.27 Red edged gray ribbon cable UL2651

Project	Parameter Description
Product Name	IDC XP Ribbon Cable, Gray Ribbon Cable IDC 1.27, Two - piece Type, etc.
Connection Method	IDC (Insulation Displacement Contact)
Ribbon Cable Type	Gray Ribbon Cable
Ribbon Cable Standard	UL2678, etc.
Conductor Specification	30AWG
Pitch	1.27mm (Standard)
Core Count (PIN Count)	6 - 100 PIN (Common: 10P, 14P, 16P, 20P, 30P, 40P, 50P, 60P, 64P, etc.)
Plug Structure	Two - piece / Three - piece (with or without cover)
Connector Color	Black (Standard), customizable color
Ribbon Cable Color	Gray (Standard)
Rated Current	0.5A / PIN (depending on conductor specification)
Working Voltage	250V AC / DC (depending on insulation material)
Working Temperature Range	105℃ - 300V (Note: There may be unit confusion in the temperature range description. It is recommended to check the actual parameters.)
Flammability Rating	UL94V - 0 (connector housing)
Contact Resistance	Maximum 20mΩ
Insulation Resistance	Minimum 300MΩ
Terminal Material	Phosphor Bronze or Brass
Terminal Plating	Tin - Plated or Gold - Plated (optional)
Connector Housing Material	PBT and other high - temperature engineering plastics
Service Life	Plugging and Unplugging ≥ 100 times
Certification Standards	RoHS, REACH, UL (optional)
Packaging Method	Generally PE bags + cartons, supporting customized labels and packaging
OEM/ODM Support	Supported, including customization of wire length, terminals, colors, etc.



The 1.27 Red edged gray ribbon cable UL2651 launched by honglimachine is a benchmark product combining safety and reliability in the electronic connection field. As a high-performance wire compliant with UL2651 standards, it stands out in the Gray Ribbon Cable series with its precise 1.27mm pitch design, while integrating the structural advantages of Gray Flat Ribbon Cable 1.27 red edge and 1.27 red edged gray ribbon cable, making it an ideal choice for Flat Ribbon Cable and Ribbon Wire Cable application scenarios.



This cable uses high-purity tinned copper conductors with UL-certified eco-friendly PVC outer sheath, operating stably at -40℃ to 80℃ and meeting VW-1 flame retardant grade. The 1.27mm precision pitch fits high-density interfaces, and the red edge marking (echoing red edge gray flat ribbon cable) enables quick wire sequence identification. Its flat ribbon structure saves 50% wiring space, suitable for space-constrained scenarios like laptop motherboards and medical devices. With excellent bend resistance (10,000+ bends) and low signal loss (≤0.5dB@100MHz), it provides stable connection solutions for industrial automation and consumer electronics.
