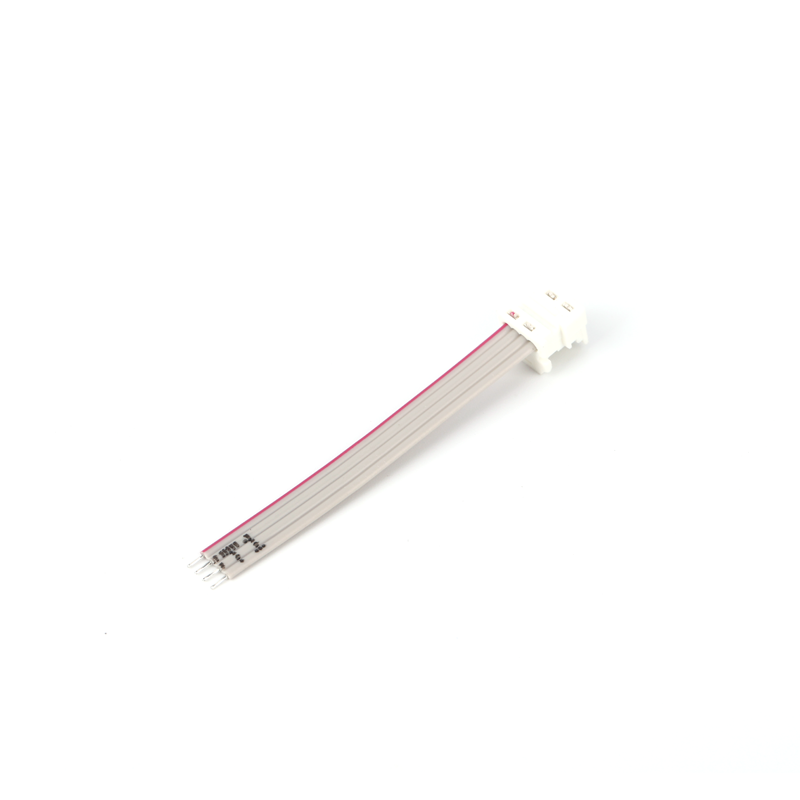

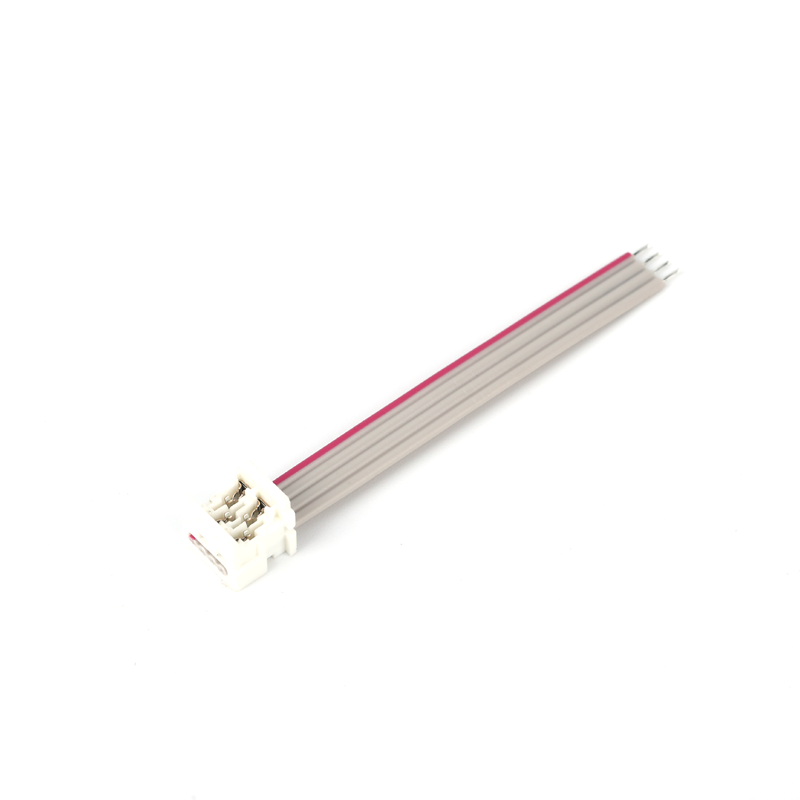

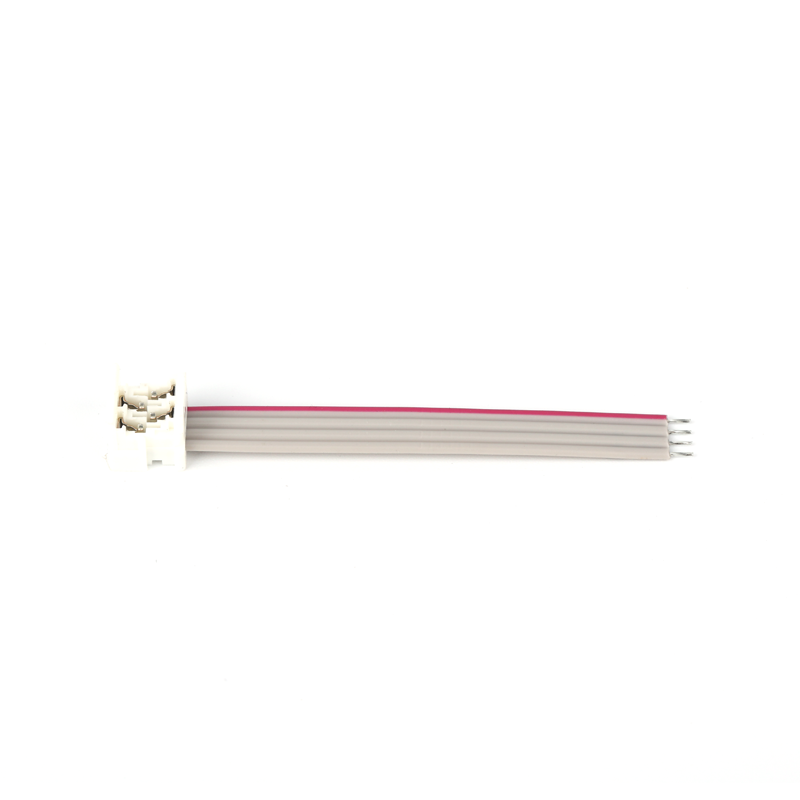

1.27 gray ribbon cable UL2651

Project	Parameter Description
Product Name	IDC XP Ribbon Cable, Gray Ribbon Cable IDC 1.27, Two - piece Type, etc.
Connection Method	IDC (Insulation Displacement Contact)
Ribbon Cable Type	Gray Ribbon Cable
Ribbon Cable Standard	UL2678, etc.
Conductor Specification	30AWG
Pitch	1.27mm (Standard)
Core Count (PIN Count)	6 - 100 PIN (Common: 10P, 14P, 16P, 20P, 30P, 40P, 50P, 60P, 64P, etc.)
Plug Structure	Two - piece / Three - piece (with or without cover)
Connector Color	Black (Standard), customizable color
Ribbon Cable Color	Gray (Standard)
Rated Current	0.5A / PIN (depending on conductor specification)
Working Voltage	250V AC / DC (depending on insulation material)
Working Temperature Range	105℃ - 300V (Note: There may be unit confusion in the temperature range description. It is recommended to check the actual parameters.)
Flammability Rating	UL94V - 0 (connector housing)
Contact Resistance	Maximum 20mΩ
Insulation Resistance	Minimum 300MΩ
Terminal Material	Phosphor Bronze or Brass
Terminal Plating	Tin - Plated or Gold - Plated (optional)
Connector Housing Material	PBT and other high - temperature engineering plastics
Service Life	Plugging and Unplugging ≥ 100 times
Certification Standards	RoHS, REACH, UL (optional)
Packaging Method	Generally PE bags + cartons, supporting customized labels and packaging
OEM/ODM Support	Supported, including customization of wire length, terminals, colors, etc.



The 1.27 gray ribbon cable UL2651 launched by honglimachine is an excellent product that meets the needs of efficient and stable connections for electronic devices. As a core model compliant with UL2651 standards in the Gray Ribbon Cable series, it stands out among similar products with its precise 1.27mm specification, while combining the space-saving advantages of Flat Ribbon Cable and the flexible wiring features of Ribbon Wire Cable.



This cable uses high-purity oxygen-free copper conductors to ensure excellent electrical conductivity, with a signal transmission loss as low as 0.2dB@100MHz, enabling stable and fast data transmission. The 1.27mm pitch design precisely fits various interfaces of electronic devices, allowing for easy plugging and unplugging with a tight connection. The gray outer sheath is made of eco-friendly PVC material, with good abrasion resistance and bendability, capable of withstanding more than 10,000 bending tests and having a long service life. Its flat ribbon structure saves 60% more installation space compared to traditional cables, effectively solving the problem of crowded internal wiring in devices. Whether it is for computer motherboards, smart wearable devices, or industrial control equipment, the 1.27 gray ribbon cable UL2651 can ensure efficient connections between devices with its stable and reliable performance. It is an ideal choice for the electronics manufacturing, communication, and other industries.
