Model No.: 0618119

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Project	Parameter Description
Product Name	IDC XP Ribbon Cable, Gray Ribbon Cable IDC 1.27, Two - piece Type, etc.
Connection Method	IDC (Insulation Displacement Contact)
Ribbon Cable Type	Gray Ribbon Cable
Ribbon Cable Standard	UL2678, etc.
Conductor Specification	30AWG
Pitch	1.27mm (Standard)
Core Count (PIN Count)	6 - 100 PIN (Common: 10P, 14P, 16P, 20P, 30P, 40P, 50P, 60P, 64P, etc.)
Plug Structure	Two - piece / Three - piece (with or without cover)
Connector Color	Black (Standard), customizable color
Ribbon Cable Color	Gray (Standard)
Rated Current	0.5A / PIN (depending on conductor specification)
Working Voltage	250V AC / DC (depending on insulation material)
Working Temperature Range	105℃ - 300V (Note: There may be unit confusion in the temperature range description. It is recommended to check the actual parameters.)
Flammability Rating	UL94V - 0 (connector housing)
Contact Resistance	Maximum 20mΩ
Insulation Resistance	Minimum 300MΩ
Terminal Material	Phosphor Bronze or Brass
Terminal Plating	Tin - Plated or Gold - Plated (optional)
Connector Housing Material	PBT and other high - temperature engineering plastics
Service Life	Plugging and Unplugging ≥ 100 times
Certification Standards	RoHS, REACH, UL (optional)
Packaging Method	Generally PE bags + cartons, supporting customized labels and packaging
OEM/ODM Support	Supported, including customization of wire length, terminals, colors, etc.

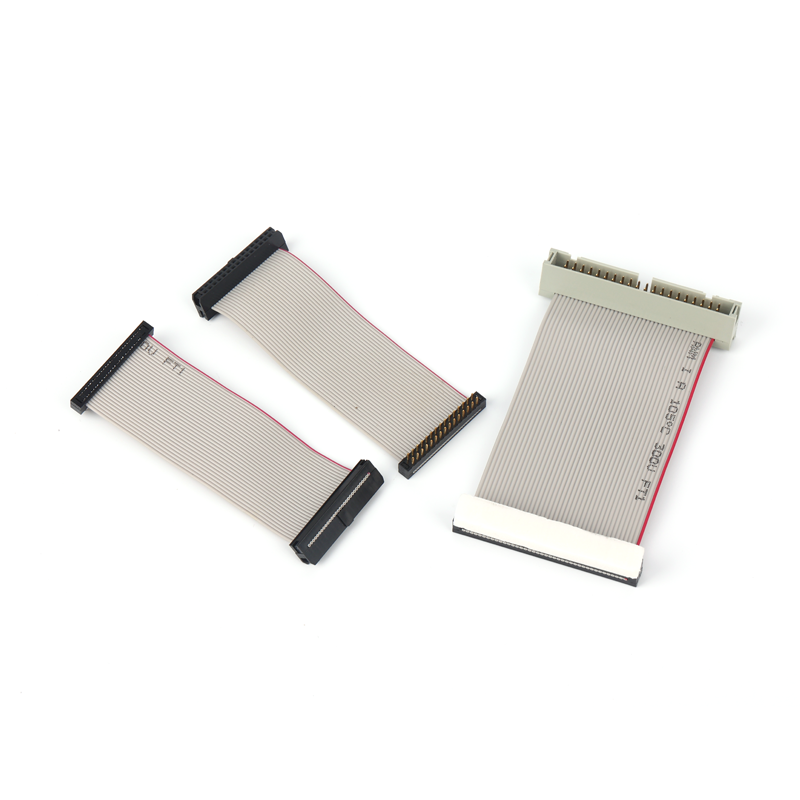

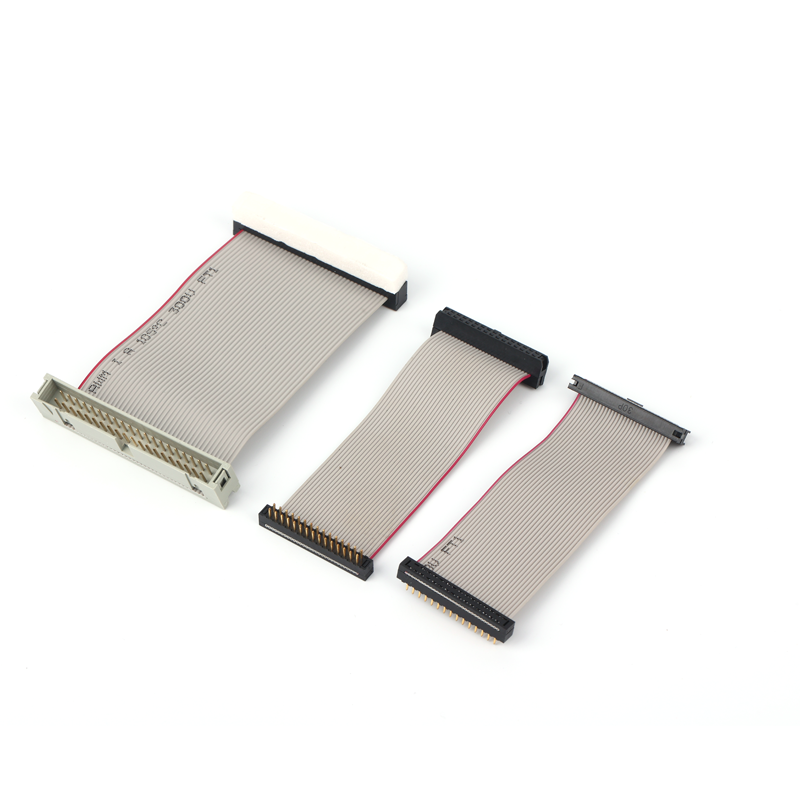

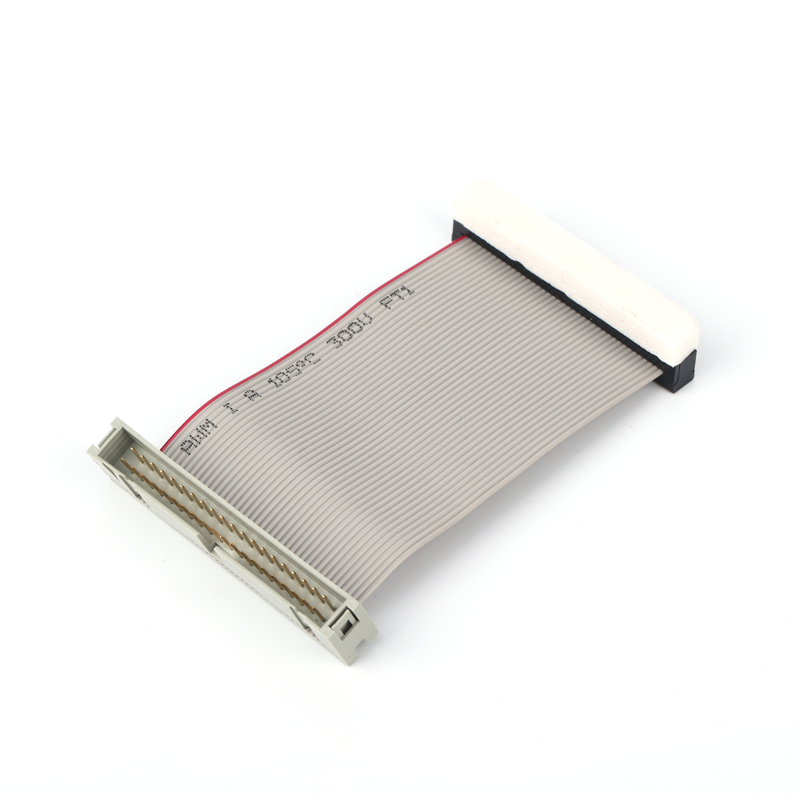

The 1.27mm Red edged gray ribbon cable from yangzhankang is a professional solution for high-density electronic device connections. As a core product of the Gray Ribbon Cable series, its 1.27mm precision pitch and red edge marking show unique advantages in Gray Flat Ribbon Cable 1.27 red edge, 1.27 red edged gray ribbon cable, and gray Flat Cable red edge 1.27 categories, while adapting to diverse installation needs of Flat Ribbon Cable and Ribbon Wire Cable.

Featuring high-purity oxygen-free copper conductors and eco-friendly PVC sheath, this cable offers excellent conductivity and bend resistance (withstands 8,000+ bends). The 1.27mm pitch fits mainstream interfaces like FC sockets and IDC Connectors, and the red edge (echoing red edge gray flat ribbon cable) enables quick wire sequence identification. Its flat strip structure saves over 40% of installation space and is suitable for compact devices such as laptop motherboards and smart home control panels. Its working temperature range is -30 ℃ to 75 ℃, and it meets the UL94V-0 flame retardant standard, ensuring reliable transmission of industrial control and medical equipment signals.

In practical application scenarios, this 1.27mm red edged gray ribbon cable has gained consistent recognition from customers in the electronics manufacturing industry, especially for its stable performance in long-term continuous operation of equipment—many users have reported that the cable maintains low signal attenuation even after 2 years of use, far exceeding the average service life of similar products in the market. To further meet the personalized needs of different customers, yangzhankang also provides tailored services such as custom cable lengths (ranging from 10cm to 10m) and pre-stripped wire ends, which greatly improves the efficiency of on-site assembly for enterprises. Looking ahead, yangzhankang will focus on the development trends of miniaturized and high-speed electronic devices, and optimize the cable's conductor density and insulation material performance to ensure it can adapt to faster data transmission requirements (such as 1Gbps+ signal transmission) while maintaining its original space-saving and flame-retardant advantages, continuing to provide more competitive connection solutions for the industry.
