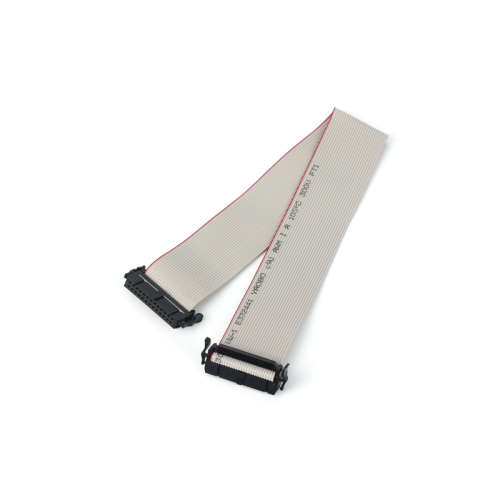

1.27 Red edged gray wire UL261

Project	Parameter Description
Product Name	IDC XP Ribbon Cable, Gray Ribbon Cable IDC 1.27, Two - piece Type, etc.
Connection Method	IDC (Insulation Displacement Contact)
Ribbon Cable Type	Gray Ribbon Cable
Ribbon Cable Standard	UL2678, etc.
Conductor Specification	30AWG
Pitch	1.27mm (Standard)
Core Count (PIN Count)	6 - 100 PIN (Common: 10P, 14P, 16P, 20P, 30P, 40P, 50P, 60P, 64P, etc.)
Plug Structure	Two - piece / Three - piece (with or without cover)
Connector Color	Black (Standard), customizable color
Ribbon Cable Color	Gray (Standard)
Rated Current	0.5A / PIN (depending on conductor specification)
Working Voltage	250V AC / DC (depending on insulation material)
Working Temperature Range	105℃ - 300V (Note: There may be unit confusion in the temperature range description. It is recommended to check the actual parameters.)
Flammability Rating	UL94V - 0 (connector housing)
Contact Resistance	Maximum 20mΩ
Insulation Resistance	Minimum 300MΩ
Terminal Material	Phosphor Bronze or Brass
Terminal Plating	Tin - Plated or Gold - Plated (optional)
Connector Housing Material	PBT and other high - temperature engineering plastics
Service Life	Plugging and Unplugging ≥ 100 times
Certification Standards	RoHS, REACH, UL (optional)
Packaging Method	Generally PE bags + cartons, supporting customized labels and packaging
OEM/ODM Support	Supported, including customization of wire length, terminals, colors, etc.



The newly launched 1.27 Red edged gray wire UL261 by honglimachine is an optimal solution for signal transmission and power connection in electronic devices. As a high-performance wire certified by UL261 standards, it stands out in the Gray Ribbon Cable category with its unique design, while featuring the structural characteristics of Gray Flat Ribbon Cable 1.27 red edge and 1.27 red edged gray ribbon cable, perfectly adapting to diverse application scenarios of Flat Ribbon Cable and Ribbon Wire Cable.



This wire uses high-purity tinned copper conductors to ensure low resistance and high conductivity, effectively reducing signal loss and heat generation. The standard 1.27mm specification, combined with the eye-catching red edge marking (echoing red edge gray flat ribbon cable), not only facilitates quick identification of wire sequences during installation but also improves work efficiency in complex wiring environments. The gray outer sheath is made of UL-certified eco-friendly PVC material, with excellent wear resistance, temperature resistance, and flame retardancy. It can operate stably in environments ranging from -30°C to 80°C, with a flame retardant rating of VW-1. Its flat structure design saves space, making it easy to organize wire harnesses and route wires inside devices. Widely used in smart home appliances, communication equipment, industrial automation systems, and other fields, it ensures the stable operation of devices with reliable performance.
