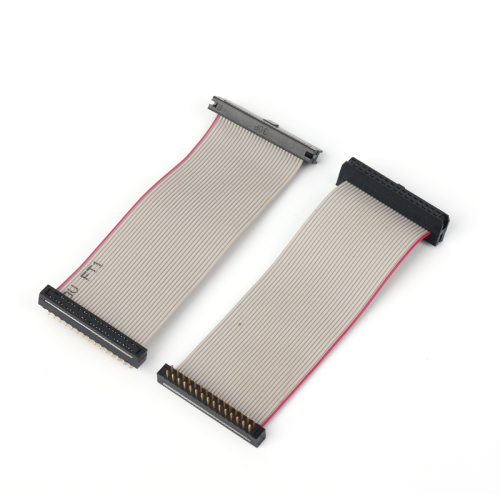

1.27mm gray ribbon cable UL2651

Get Latest Price

Min. Order:

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: 0618123

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Project	Parameter Description
Product Name	IDC XP Ribbon Cable, Gray Ribbon Cable IDC 1.27, Two - piece Type, etc.
Connection Method	IDC (Insulation Displacement Contact)
Ribbon Cable Type	Gray Ribbon Cable
Ribbon Cable Standard	UL2678, etc.
Conductor Specification	30AWG
Pitch	1.27mm (Standard)
Core Count (PIN Count)	6 - 100 PIN (Common: 10P, 14P, 16P, 20P, 30P, 40P, 50P, 60P, 64P, etc.)
Plug Structure	Two - piece / Three - piece (with or without cover)
Connector Color	Black (Standard), customizable color
Ribbon Cable Color	Gray (Standard)
Rated Current	0.5A / PIN (depending on conductor specification)
Working Voltage	250V AC / DC (depending on insulation material)
Working Temperature Range	105℃ - 300V (Note: There may be unit confusion in the temperature range description. It is recommended to check the actual parameters.)
Flammability Rating	UL94V - 0 (connector housing)
Contact Resistance	Maximum 20mΩ
Insulation Resistance	Minimum 300MΩ
Terminal Material	Phosphor Bronze or Brass
Terminal Plating	Tin - Plated or Gold - Plated (optional)
Connector Housing Material	PBT and other high - temperature engineering plastics
Service Life	Plugging and Unplugging ≥ 100 times
Certification Standards	RoHS, REACH, UL (optional)
Packaging Method	Generally PE bags + cartons, supporting customized labels and packaging
OEM/ODM Support	Supported, including customization of wire length, terminals, colors, etc.

The 1.27mm Gray Ribbon Cable UL2651 is a high-quality wiring solution that meets international standards and is widely used in computers, printers, CNC equipment, industrial automation systems, and consumer electronics. Designed with UL2651 insulation, it offers excellent flame resistance and heat endurance, ensuring both safe and stable data transmission.

Its gray appearance is easy to identify, while also possessing excellent flexibility and durability, ensuring reliable operation even under repeated bending and frequent insertion and removal. The parallel structure of the cable ensures neat wiring, saves installation space, and simplifies maintenance. When used in conjunction with IDC connectors and other standard interfaces, efficient and consistent connections can be achieved, making it compatible with Gray Ribbon Cable and Ribbon Wire Cable systems.

Compared with the common standard gray ribbon cables on the market, this cable has improved tensile strength and durability. Meanwhile, its performance is similar to that of Flat Ribbon Cable, but its flexibility and stability have been enhanced, making it suitable for more complex wiring scenarios. It can also integrate seamlessly with Gray Flat Ribbon Cable, offering versatile options for various electronic assembly applications. As a professional ribbon cable, it strikes a balance between reliability, flexibility, and ease of use.
