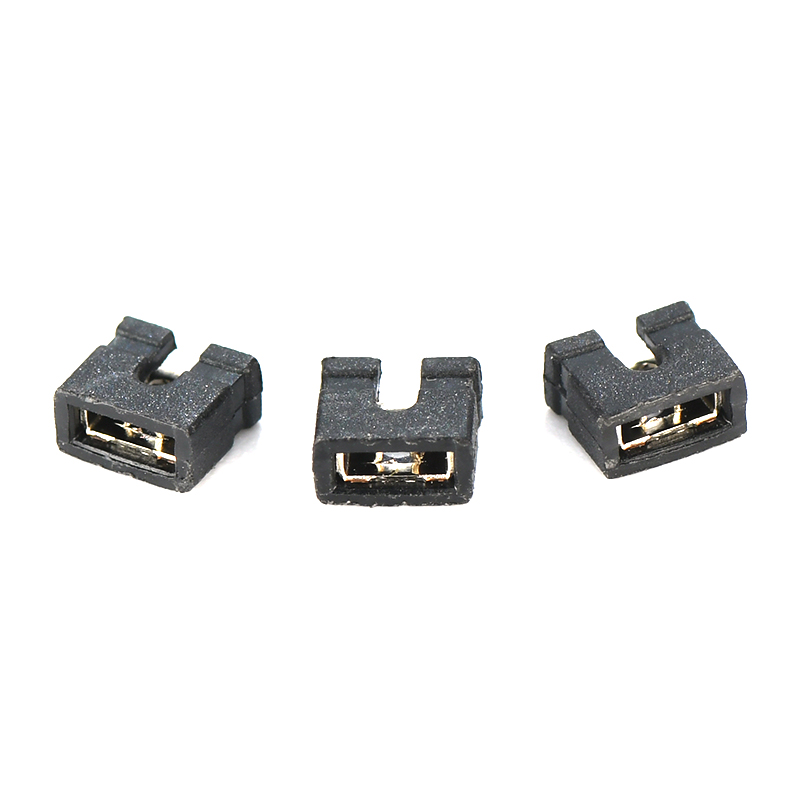

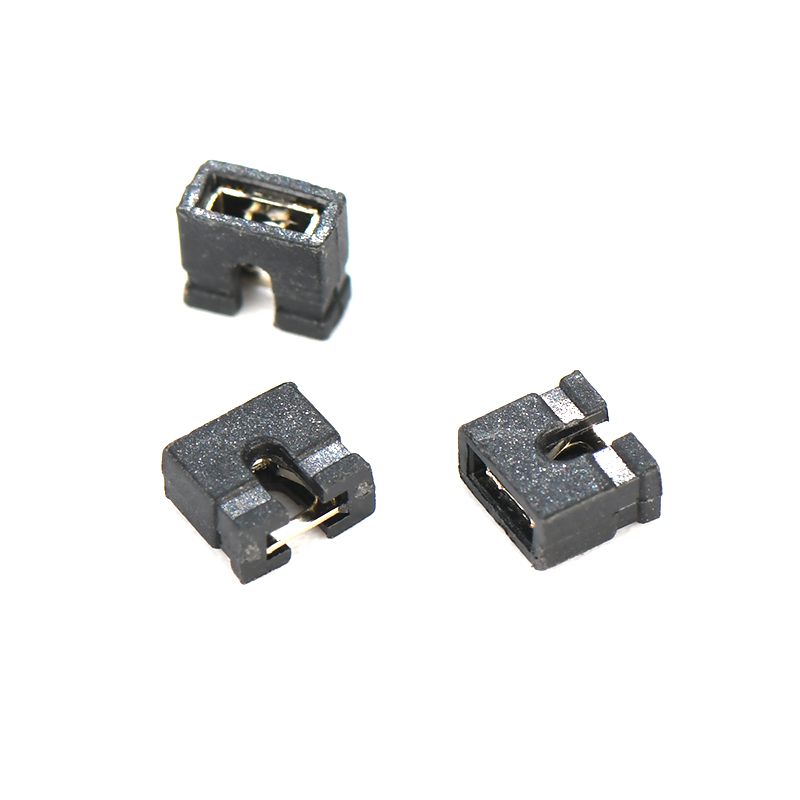

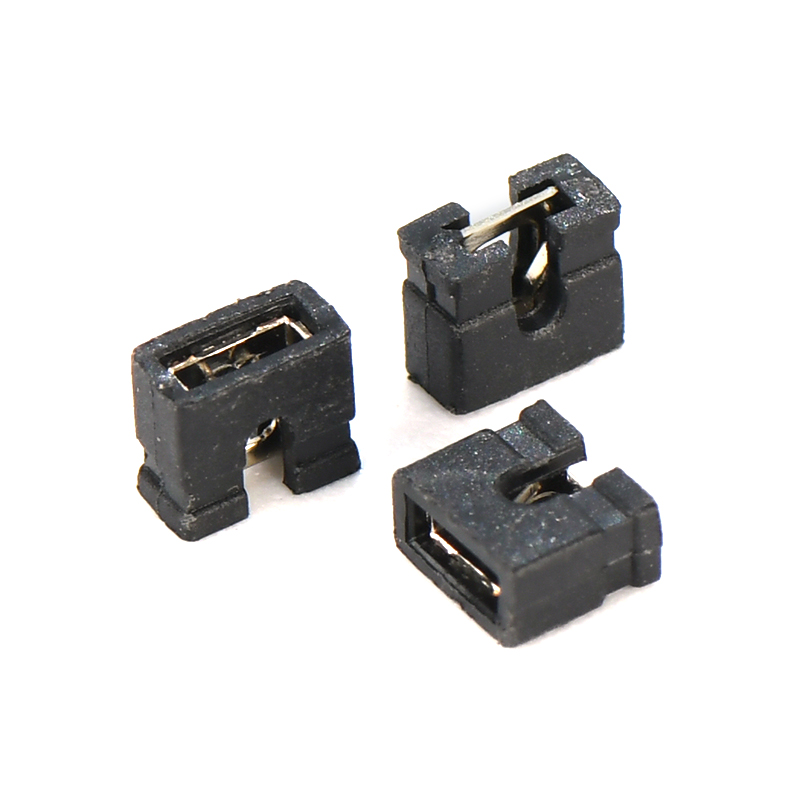

2.0mm Mini Jumper H3.5 Open Cap

The 2.0mm Mini Jumper H3.5 Open Cap is designed for compact electronic boards that need quick and stable circuit switching. With its small size and open cap structure, it is easy to install and remove during testing, maintenance, or function setting adjustments.

Item	Specification
Model	MINI JUMP 2.0 H3.5 OPEN
Pitch	2.0 mm
Type	Open Type
Height	3.5 mm
Poles	1×2P
Housing	PBT+GF, UL94V-0
Contact	Phosphor Bronze / Brass
Plating	Au over Ni / Matte Tin
Rated Voltage	250V AC/DC
Rated Current	3A per Pole
Contact Resistance	≤ 20 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstand Voltage	1000V AC / 1 min
Operating Temperature	-40℃ ~ +105℃
Mating Cycles	≥ 50 times
Compliance	RoHS, Halogen Free

This MINI JUMP 2.0 H3.5 Connector is often used in computer boards, control modules, communication devices, and small electronic equipment where space is limited but reliable connection is still important. The compact body helps keep the PCB layout cleaner without affecting operation efficiency.

One practical advantage of this model is the smooth plugging experience. The contact part fits tightly with the Pin Header, helping maintain stable conductivity after repeated use. The durable plastic housing also helps reduce wear during frequent handling.

As a commonly used Jumper Connector solution, this product supports flexible circuit configuration and convenient debugging work during assembly. The H3.5 Open Type Mini Jumper design also makes visual inspection easier, which helps technicians confirm the connection position quickly.

For customers searching for a compact Jumper Cap with stable contact performance, this model is a dependable option for both mass production and customized electronic applications. It is also suitable for projects related to jumper connector 2.54 mm products that require smaller pitch alternatives and space-saving layouts.
