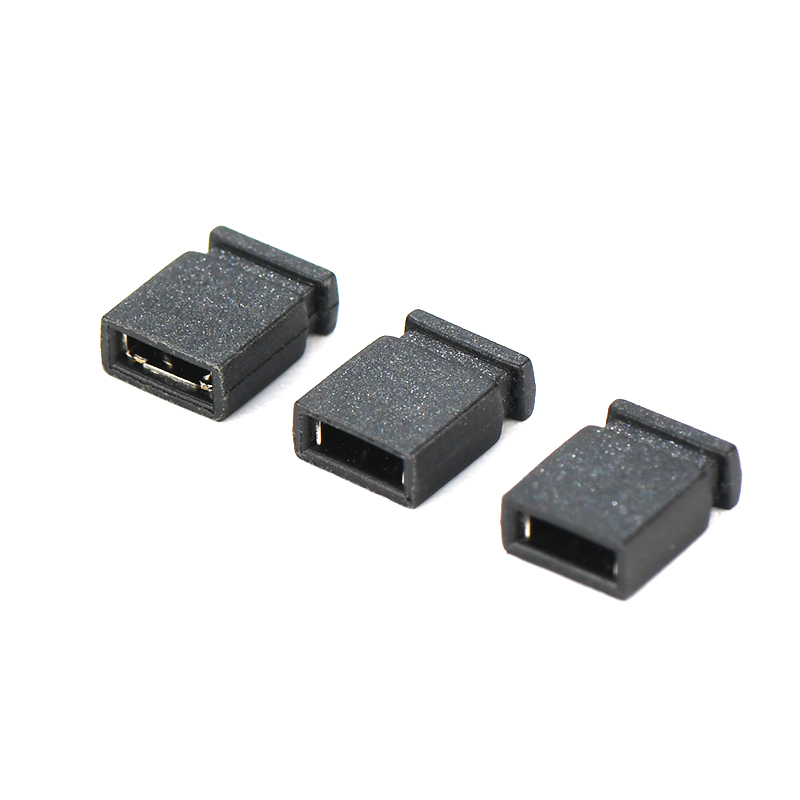

MINI JUMP 2.54 H6.5 Closed Connector

In many electronic devices, jumper caps are used to switch functions, adjust settings, or configure circuit paths. But if the jumper feels loose or collects dust easily, long-term stability can become a problem, especially in equipment that runs continuously.

Item	Specification
Model	MINI JUMP 2.54 H6.5 CLOSE
Pitch	2.54mm (0.1")
Type	Close Type / Closed Top
Height	6.5mm
Poles	1×2P
Housing	PBT+GF / Polyester, UL94V-0
Contact	Brass / Phosphor Bronze
Plating	Matte Tin / Au over Ni
Rated Voltage	250V AC/DC
Rated Current	3A per Pole
Contact Resistance	≤ 20 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstand Voltage	1000V AC / 1 min
Operating Temperature	-40℃ ~ +105℃
Mating Cycles	≥ 50 times
Compliance	RoHS, Halogen Free
Color	Black, Red, Blue, Green, Yellow, White

The MINI JUMP 2.54 H6.5 Closed Connector is designed to solve this with a compact closed-top structure and reliable pin contact. Its H6.5 height gives users a better grip during installation, while the enclosed design offers extra protection for the internal contact area.

Closed Top Design Adds Better Protection

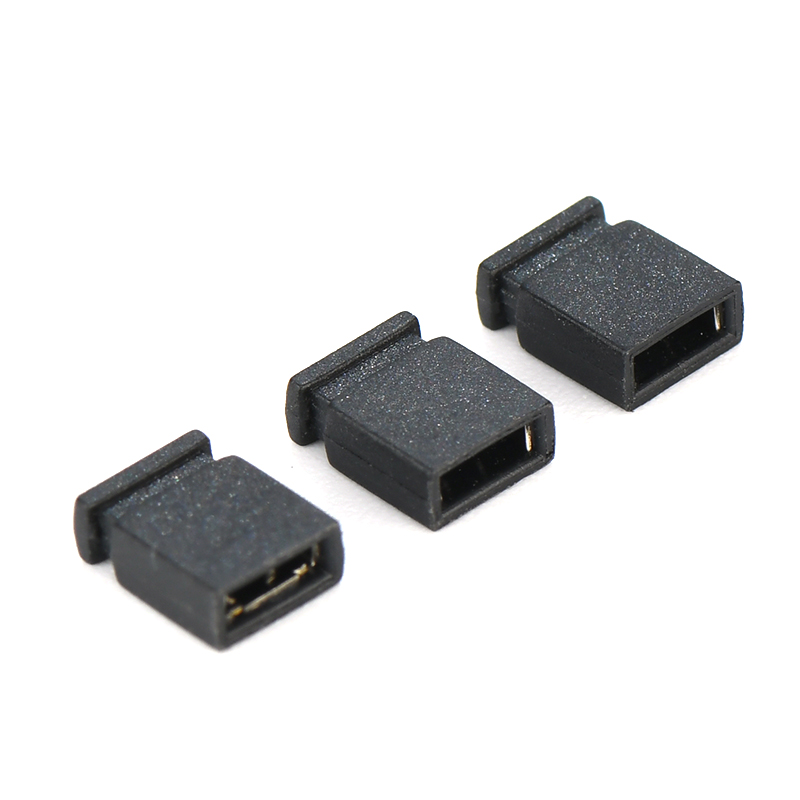

2.54mm Mini Jumper H6.5 Close Unlike open-style jumpers, a closed-top design helps reduce dust, debris, and accidental contact from affecting connection performance. This makes the connector a practical choice for products operating in more demanding environments.

Firm Contact Helps Maintain Stable Signals

Even though it is a small component, a jumper directly affects signal continuity. If contact pressure is weak, unstable signals or configuration errors may happen.

This Jumper Connector uses a precise internal metal contact structure to ensure a secure fit on pin headers. Once installed, it stays firmly in place and supports stable conductivity through repeated use.

As a dependable 2 pin jumper, it is especially suitable for simple circuit bridging and function selection applications.

Easy to Handle During Assembly

Small components can slow down assembly if they are hard to grip. The H6.5 profile makes this model easier to pick up, place, and remove, helping technicians work faster during production or maintenance.

The MINI JUMP 2.54 H6.5 Closed model is also compatible with many standard pin layouts, making it useful for various board designs. As a durable Jumper Cap, it balances easy handling with secure retention.
