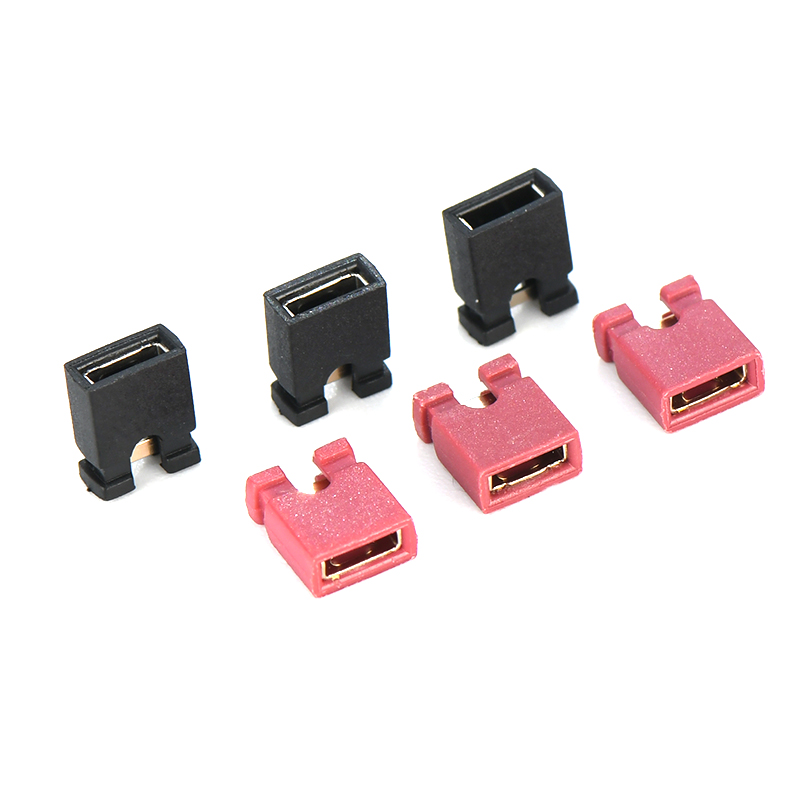

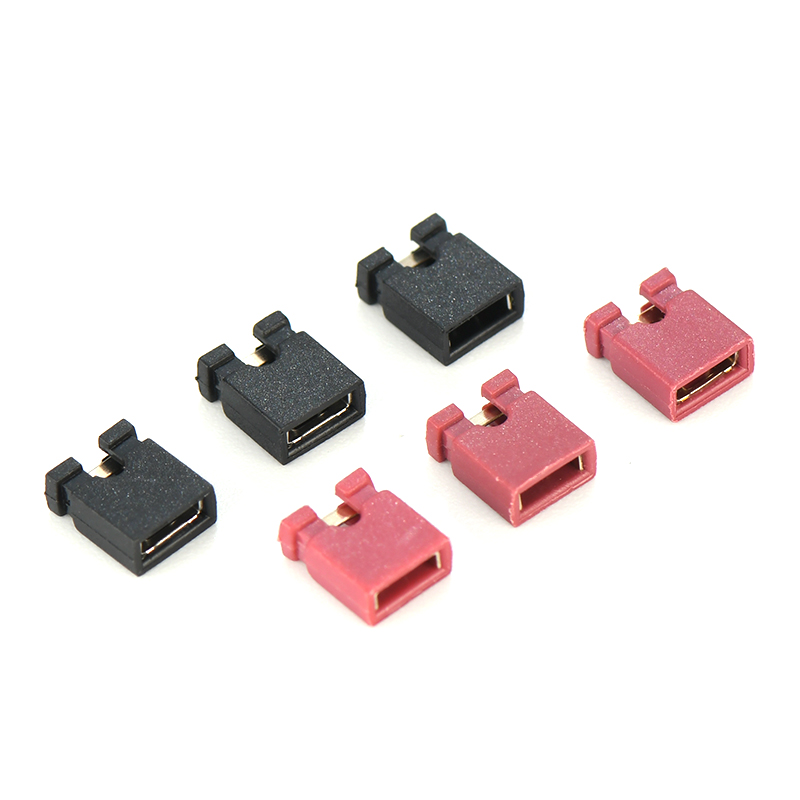

MINI JUMP 2.54 H6.0 Jumper Connector

In compact electronic devices, circuit settings often need to be changed quickly during testing, debugging, or maintenance. A jumper that is too small or difficult to handle can slow down assembly work and increase the chance of incorrect connections.

Item	Specification
Model	MINI JUMP 2.54 H6.0 OPEN (Colorful)
Pitch	2.54mm (0.1")
Type	Open Type
Height	6.0mm
Poles	1×2P
Housing	PBT+GF / Polyester, UL94V-0
Contact	Brass / Phosphor Bronze
Plating	Matte Tin / Au over Ni
Rated Voltage	250V AC/DC
Rated Current	3A per Pole
Contact Resistance	≤ 20 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstand Voltage	1000V AC / 1 min
Operating Temperature	-40℃ ~ +105℃
Mating Cycles	≥ 50 times
Compliance	RoHS, Halogen Free
Color	Black, Red, Blue, Green, Yellow, White

The MINI JUMP 2.54 H6.0 Jumper Connector is designed to make circuit bridging simple and reliable. With its 2.54mm pitch and higher H6.0 profile, it is easier to grip by hand and more convenient to install on densely populated PCBs.

Easy Handling in Tight PCB Layouts

When components are packed closely together, technicians need a jumper that can be removed and reinstalled without damaging nearby parts. The raised H6.0 structure improves accessibility and helps speed up maintenance and configuration work.

This MINI JUMP 2.54 H6.0 Open model is especially practical for:

Computer motherboards

Industrial control boards

Communication equipment

Security and monitoring devices

Testing and debugging systems

Colorful Housing Helps Reduce Wiring Mistakes

In production lines and repair environments, visual identification matters. The 2.54mm Colorful Jumper Cap H6.0 allows different functions or circuit settings to be identified quickly, helping reduce confusion during troubleshooting or batch assembly.

As a dependable Jumper Cap, it provides stable contact while also improving operational efficiency for technicians working with multiple jumper positions.

Stable Contact Performance for Repeated Use

A jumper connector is a small component, but it directly affects circuit continuity. The MINI JUMP 2.54 H6.0 uses a firm internal contact structure to maintain consistent conductivity even after repeated insertion and removal.

For projects that require reliable PCB configuration, this Jumper Connector offers:

1. Secure pin retention

2. Smooth insertion and removal

3. Stable electrical conductivity

4. Durable housing for long service life

It is also suitable for applications related to jumper connector 2.54 mm systems that require compact and easy-to-operate circuit bridging solutions.

Typical Applications

This connector is widely used in electronic products that require manual circuit selection or configuration adjustment.

PC motherboards and expansion cards

Industrial automation controllers

Networking and communication devices

Smart home electronics

Security monitoring equipment

Electronic testing instruments

Why Choose YZK Electronics

Dongguan Yangzhankang Electronics Co., Ltd. focuses on reliable connector solutions for electronic manufacturing. We provide stable production capability, strict quality inspection, and flexible OEM customization support for global customers.

Our advantages include:

Automated production lines

Consistent quality control

Fast sample support

Flexible customization options

Stable delivery capability

Technical support for project development

The MINI JUMP 2.54 H6.0 Jumper Connector is a practical choice for manufacturers who need compact, durable, and easy-to-use jumper solutions for modern electronic devices.
