Two in One Open Type Mini Jumper Cap



When a PCB has several settings to manage, using separate jumper caps for every position can make the board harder to configure and maintain. The Two-in-One Open Type Mini Jumper Cap combines two jumper positions into one practical component, giving technicians a simpler way to handle related circuit settings.

Item	Specification
Model	MINI JUMP 2.54 H14.0 Two‑in‑One
Pitch	2.54mm (0.1")
Type	Open Type, Two‑in‑One Dual 2P
Handle Height	14.0 mm
Poles	2×2P Integrated
Housing	PBT+GF, UL94V‑0
Contact	Phosphor Bronze / Brass
Plating	Matte Tin / Au over Ni
Rated Voltage	250V AC/DC
Rated Current	3A per position
Contact Resistance	≤ 20 mΩ
Insulation Resistance	≥ 1000 MΩ
Withstand Voltage	1000V AC / 1 min
Operating Temperature	-40℃ ~ +105℃
Mating Cycles	≥ 50 times
Compliance	RoHS, Halogen Free
Color	Black, Custom Colors Available

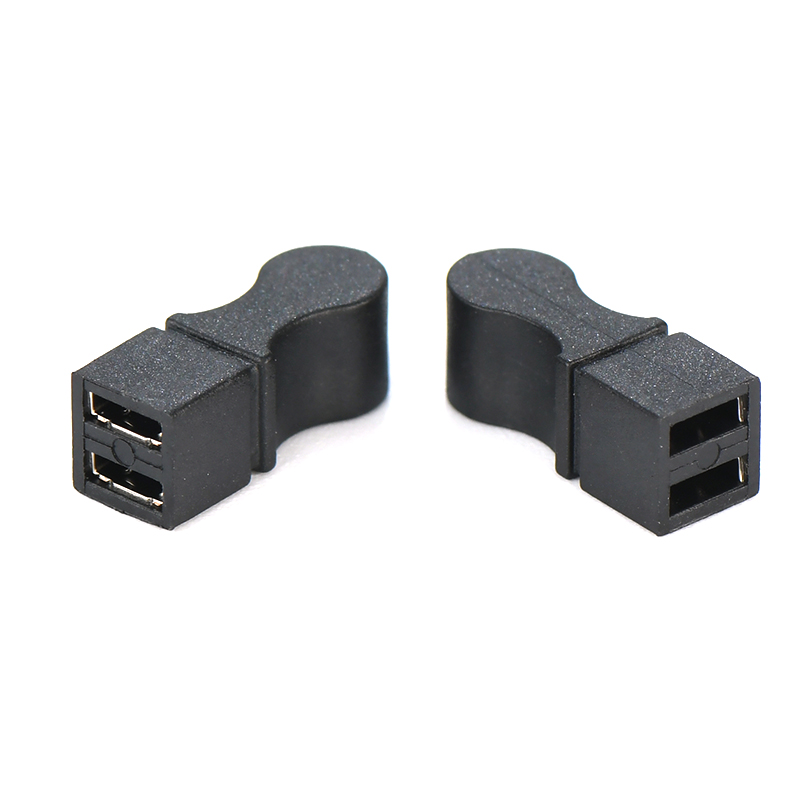

The 2.54mm H14.0 Two-in-One Jumper Cap is made for standard 2.54mm pitch header layouts and provides a convenient option for electronic boards that need more than one jumper position. Instead of reaching for separate small caps during testing, users can work with the dual arrangement directly, making circuit setup quicker and easier to identify.



A taller jumper is useful when the PCB has components surrounding the header area. The 14mm height gives the cap a clear operating profile, so technicians can locate and grip it more easily during assembly, debugging, or service work.

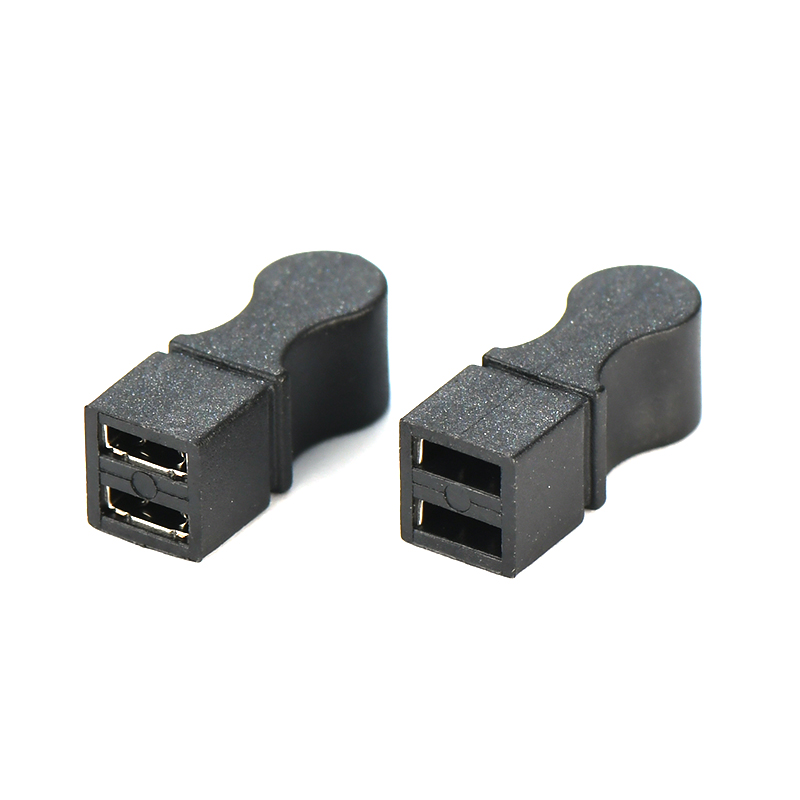

The MINI JUMP 2.54 H14.0 Dual Jumper Cap is particularly useful for products that require frequent manual configuration. Its open-type structure leaves the operating area easy to see, while the extended body provides enough room for fingers to make adjustments without struggling around nearby components. It works well as a Jumper Connector for computer boards, control modules, communication equipment, and testing fixtures.



The 14mm Long Handle 2.54mm Jumper Cap is not just about extra height. The extended body also gives technicians a more obvious visual and physical reference when several jumpers are installed across the same PCB. This can make configuration checks faster, especially during production inspection or troubleshooting.



For applications using a jumper header connector, the two-in-one structure can help reduce the number of individual pieces that need to be handled during circuit setup. The cap stays firmly positioned on the header while still allowing removal when a different setting is required. It is a practical Jumper Cap choice for boards where easy access and flexible configuration matter.



YZK is a good fit for this type of two-in-one jumper because the product depends on more than basic pin contact. The spacing, dual-cap structure, H14.0 height, and long handle all need to work together properly. Our automated production lines and full inspection process help keep these physical details consistent across batches.



For customers developing boards with dual jumper settings, YZK can also support OEM requirements around jumper structure, dimensions, and production volume. The Two in One Open Type Mini Jumper Cap is especially suited to projects where technicians need a clear, easy-to-operate component instead of handling several separate low-profile caps.
