Wire Harness Connector UL2651 Gray Flat Ribbon Cable, commonly 28AWG, spacing 1.27/2.0/2.54, used for wire connection and transmission in electronic equipment.
Product Description

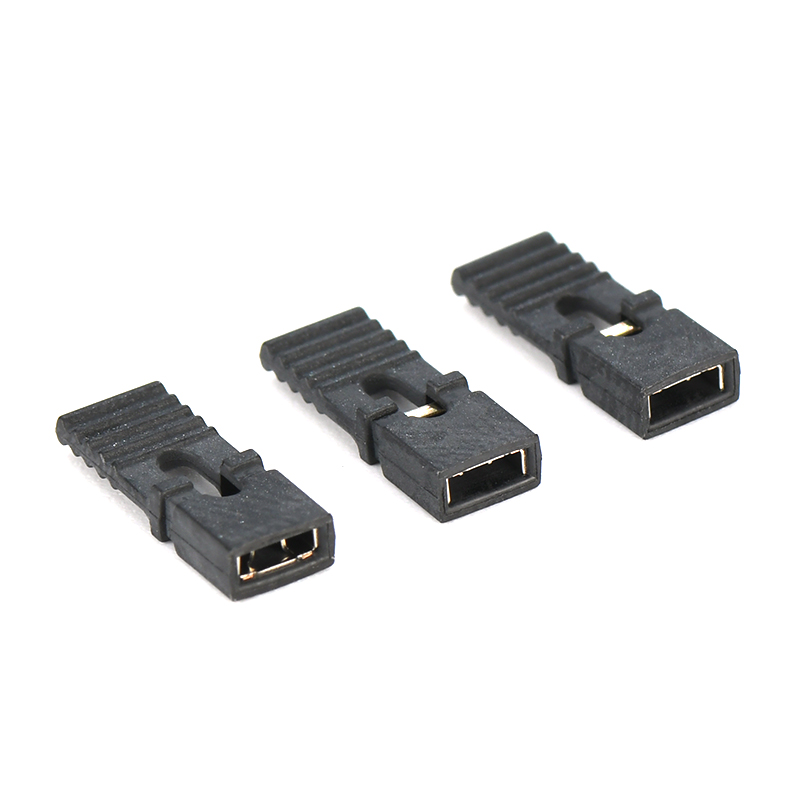

Mini Jump 2.54 H13.5 Jumper Connector



Long Handle Makes Small PCB Settings Easier to Reach


Small jumpers can be annoying to handle when several components are packed around the header. During board testing or maintenance, technicians may need to change a setting more than once, and a low-profile cap can be difficult to grip. The Mini Jump 2.54 H13.5 Jumper Connector solves this problem with its taller H13.5 body, giving users a much easier point to hold and operate.

Item Specification
Model MINI JUMP 2.54 H13.5
Pitch 2.54mm(0.1inch)
Type Open‑type, long handle
Height 13.5mm
Pins 2P
Contact Phosphor bronze, gold plated
Housing UL94V‑0 Black Nylon
Rated Current 3A
Temp Range -40℃~+105℃

The H13.5 open type mini Jumper Cap is a good fit for boards where manual adjustment is part of the job. The extended body can be picked up quickly without getting too close to surrounding components, which makes installation and removal more convenient during assembly, debugging, and repair work. As a Jumper Cap, it offers a simple way to change circuit settings without adding a complicated switching structure.


2.54mm Pitch for Straightforward Circuit Bridging


A jumper is often used when a PCB needs a simple connection between selected header pins. The PCB header short circuit connector lets engineers create or remove a short circuit path by placing or taking off the cap, making it useful for hardware configuration, testing, and function selection.

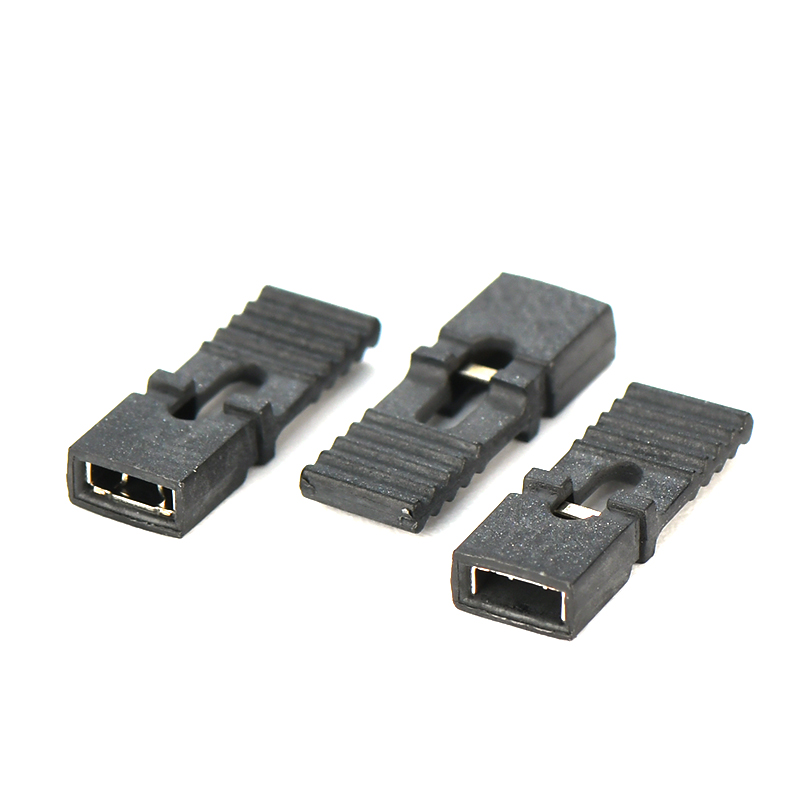

H13.5 open type mini jumper capMini Jump 2.54 H13.5 Jumper Connector
The 2.54mm pitch is widely used in electronic board layouts, so the Long handle 2.54mm jumper shunt can work with many standard header arrangements. It is particularly useful when technicians need to identify and adjust jumper positions by hand. For applications built around a jumper connector 2.54 mm, the taller profile adds operating convenience while keeping the connection method simple.


Firm Placement for Repeated Adjustment


A jumper used for configuration should not come loose every time the equipment moves or the board is handled. This model is designed to hold securely on the header pins while still allowing technicians to remove it when a circuit setting needs to be changed. That balance is important for products that go through repeated testing or service work.

As a practical Jumper Connector, the Mini Jump 2.54 H13.5 keeps the actual contact area compact while giving the user a larger operating surface. It can also serve as a jumper header connector solution for electronic assemblies where easy access, repeatable placement, and a familiar 2.54mm layout are more important than an ultra-low profile.


Why Choose YZK


For this type of long-handle jumper, manufacturing consistency matters because the H13.5 height directly affects how the component is handled and how it sits on the header. YZK uses automated production and full inspection procedures to help keep the jumper dimensions and assembly fit consistent across production batches.
