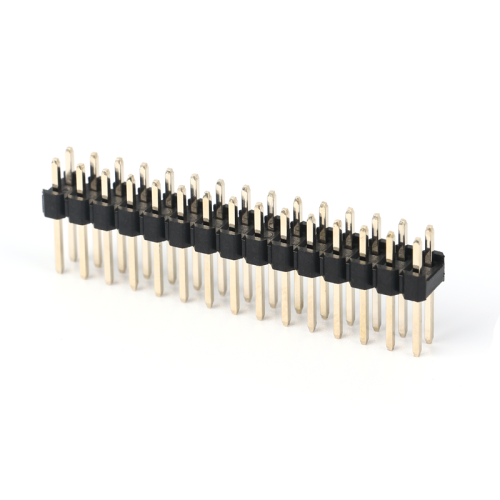

2.54mm Dual Row 180 Degree Pin Header

The 2.54mm Dual Row 180° Pin Header is designed for vertical mounting applications requiring dual-row pin arrangements with a 2.54 mm pitch. This connector is widely used in industrial electronics, communications equipment, and embedded systems where reliable, high-density Pin Connector solutions are critical. The through-hole design offers excellent solder joint strength, while the gold flash plating on copper alloy contacts ensures low resistance and long-term reliability. The black LCP plastic housing complies with stringent UL94V-0 flammability ratings, making it a safe and durable choice for various environments.



dgyzconn provides tailored manufacturing for this popular Pin Header Connector, including customization of pin counts, plating types, and packaging formats. Our quality management and environmental compliance (ISO14000, RoHS) assure customers receive connectors that meet international standards. With extensive experience in ODM and OEM production, dgyzconn delivers high-quality Pcb Board Connector components with excellent service and flexible order handling, supporting your project success from prototype to mass production.



Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
