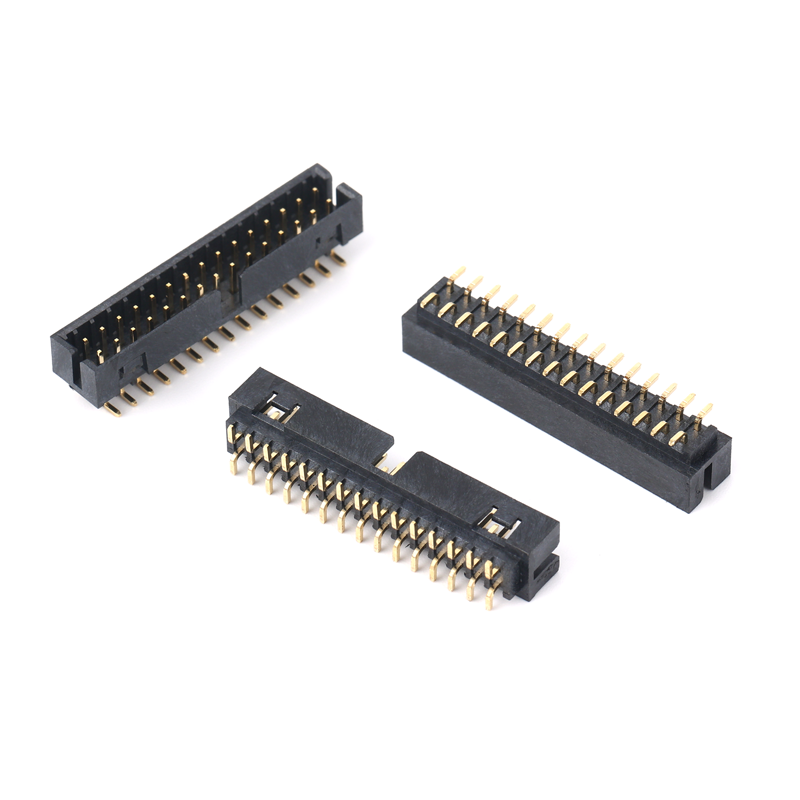

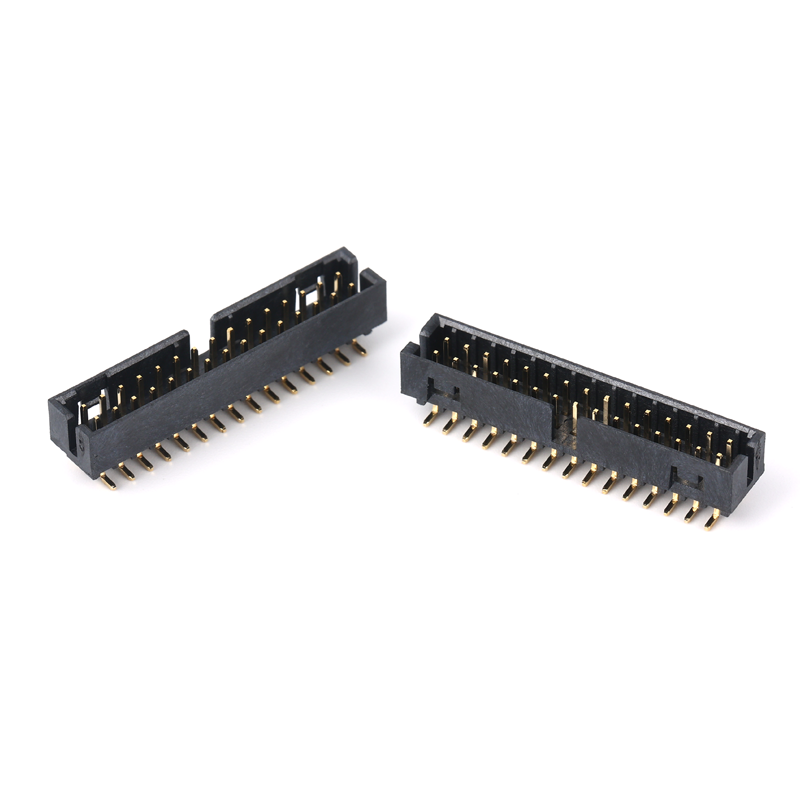

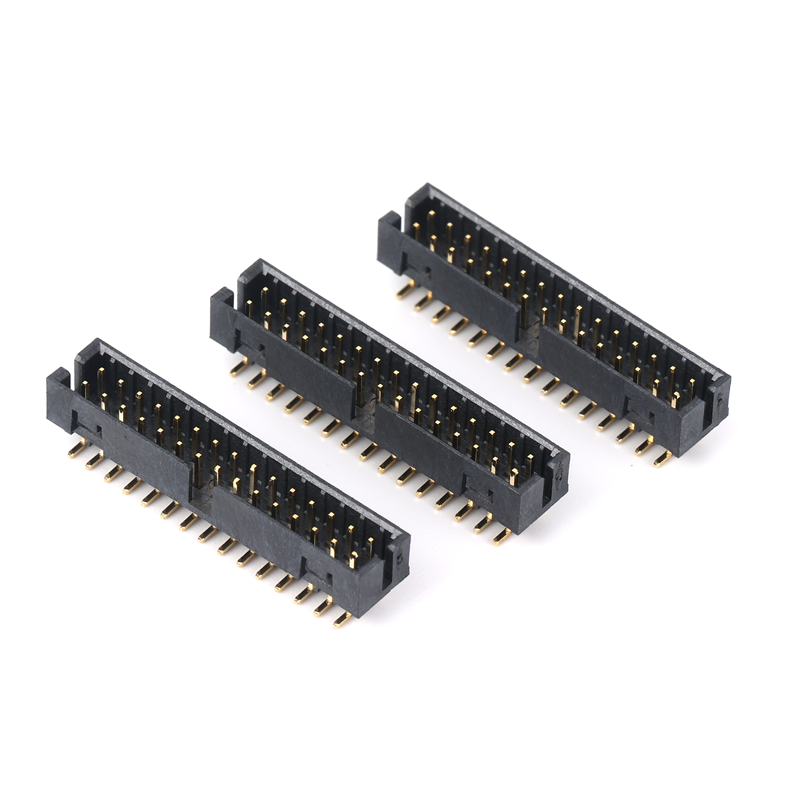

Ejector Header IDC TYPE double row SMT patch

The Black 2.0mm Hooked Cow Horn connector by dgyzconn is a high-performance product for precision internal connections. As an innovative Ejector Header IDC TYPE, its 2.0mm hook structure ensures stability in compact spaces, ideal for electronics, industrial computers, communication systems, and after-sales parts. Supports SMT, corner, and right-angle soldering, suitable for various circuit boards, especially high-density Press fit and Crimping Type Ejector Headers. Made of C2680/C5191 phosphor/tin bronze with black LCP (UL94V-0) insulator, gold-plated with ≥50u" nickel, ensuring low contact resistance ≤20mΩ. Offers 6-100 PIN options, customizable height, electroplating, and packaging. Certified IATF16949, ISO9001, ISO14000, RoHS compliant, using PA6T, PA9T, LCP plastics. Packaged in plastic pallets and cardboard boxes, supports ODM/OEM, color customizable, providing efficient, eco-friendly solutions.



Item	Description
Application	Primarily used for internal device connections; not suitable for external connectivity.
	Applicable for electronics, industrial computers, telecom systems, aftermarket components.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Plastic Row Options	Single Row, Dual Row
Rated Current	2A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating
	Nickel underlayer ≥50μ"
Number of Contacts	6–80 PINs
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Material Options	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: plastic tray + carton; customizable upon request
Service	ODM and OEM support; color customization available
