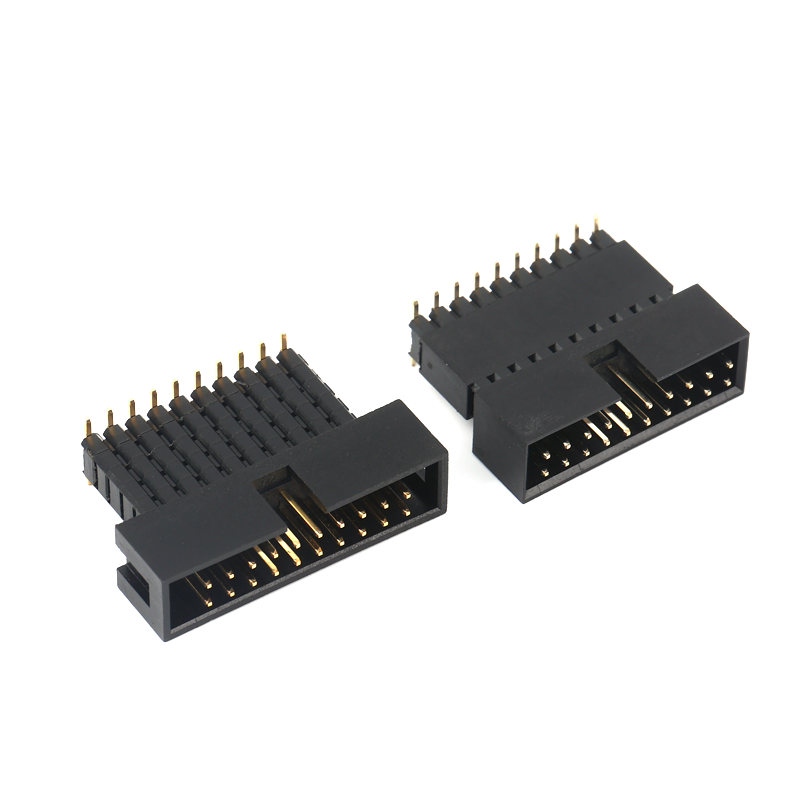

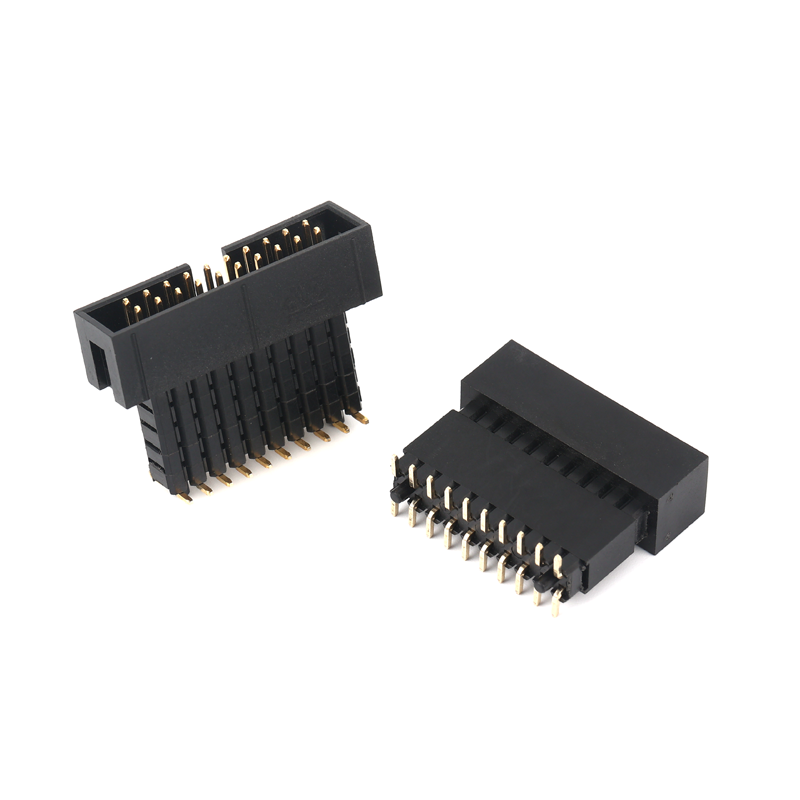

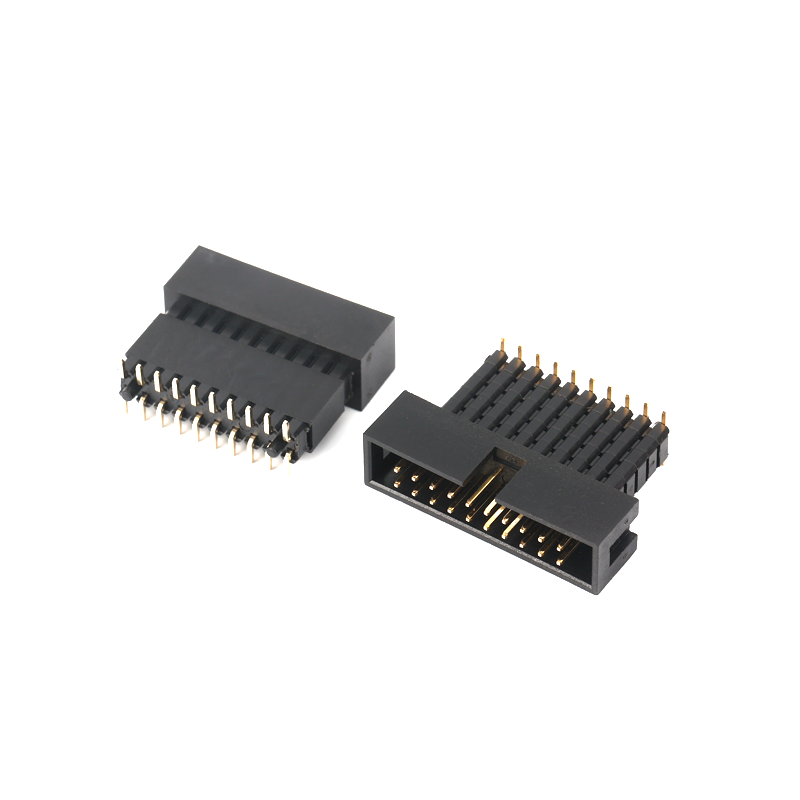

Elevated SMT patch Ejector Header IDC TYPE

dgyzconn’s Elevated SMT patch Ejector Header Idc Type Connector is designed for precise internal device connections, an ideal choice for electronics, industrial computers, etc. As part of the Ejector Header IDC TYPE Connector family, its unique elevated design combined with SMT soldering enables efficient connections in tight spaces. With multiple soldering types including SMT, angled, and right-angle, it adapts perfectly to both the quick installation of Press Fit Type Ejector Header and the stable connections of Crimping-Type Ejector Header.

Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
