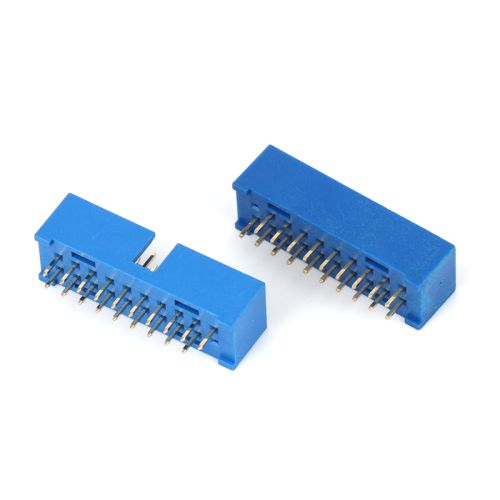

Double row blue Ejector Header IDC TYPE

dgyzconn’s Double row blue Ejector Header IDC TYPE is a top choice for internal device connections. As an Ejector Header Idc Type Connector, it suits electronics, industrial computers, etc., working well with SMT soldering and installation methods like Press Fit Type Ejector Header and Crimping-Type Ejector Header.



With a double-row design, 1A/pin rated current, it operates stably from -40°C to +105°C. Terminals of C2680 and C5191 materials, paired with black LCP insulators, along with Gold Flash plating and a ≥50u" nickel base, keep contact resistance at max 20M© for stable signal transfer. With 6 - 100 PIN options, it can be customized similar to 2.54Mm Idc Ejector Header. Certified by IATF16949, ISO9001, etc., and RoHS-compliant, it comes in standard plastic tray + carton packaging. ODM and OEM services are available, and the eye-catching blue color is customizable.

Item	Description
Application	Primarily used for internal device connections; not suitable for external connectivity.
	Applicable for electronics, industrial computers, telecom systems, aftermarket components.
Soldering Type	SMT / Straight / Right Angle / J Type / U Type
Plastic Row Options	Single Row, Dual Row
Rated Current	2A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash plating
	Nickel underlayer ≥50μ"
Number of Contacts	6–80 PINs
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Material Options	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: plastic tray + carton; customizable upon request
Service	ODM and OEM support; color customization available
