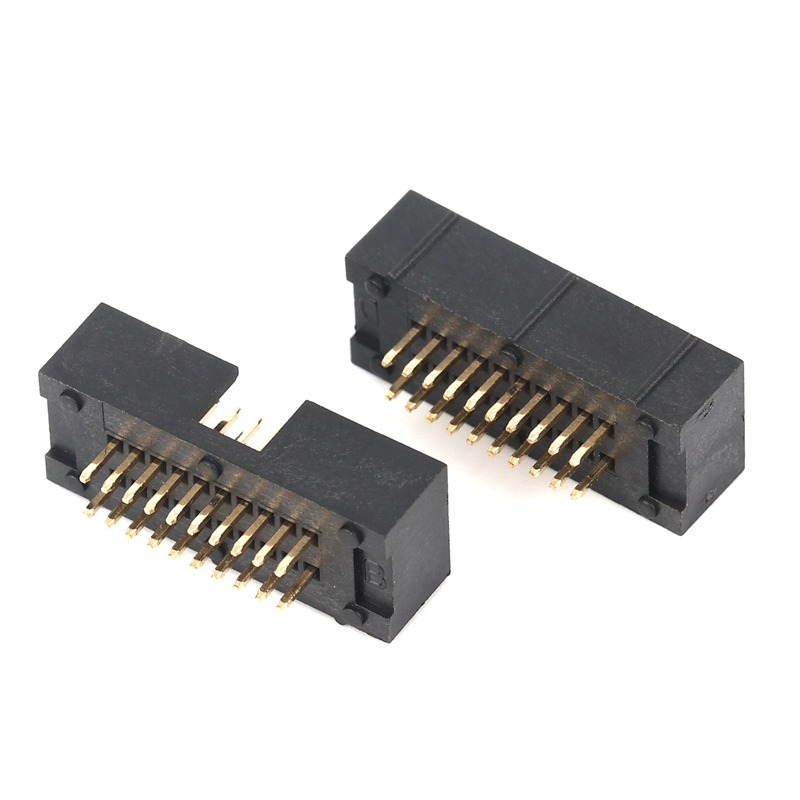

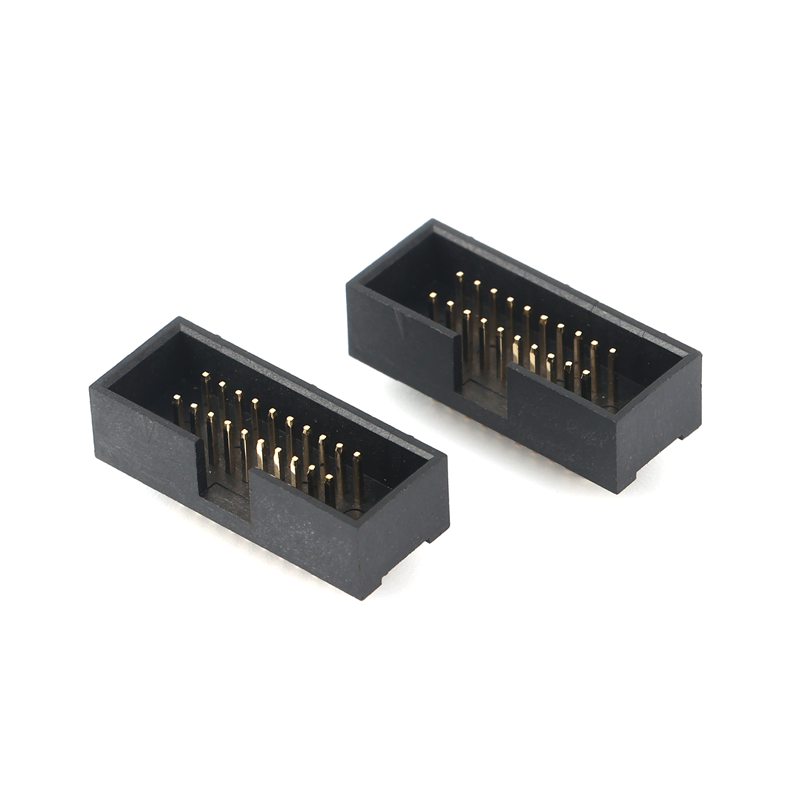

1.27mm 180 degrees black Ejector Header

dgyzconn’s 1.27mm 180 degrees black Ejector Header is the perfect choice for precise internal device connections, widely used in electronics, industrial computers, etc. As part of the Ejector Header Idc Type Connector series, its unique 180-degree design and double-row structure enable efficient connections in tight spaces. With multiple soldering types including SMT, angled, and right-angle, it meets both the quick installation of Press Fit Type Ejector Header and the stable connection needs of Crimping-Type Ejector Header.



With a 1A/pin rated current, it operates stably from -40°C to +105°C. Terminals made of C2680 and C5191, paired with black LCP (UL94V-0) insulators, along with Gold Flash plating and a ≥50u" nickel base, limit the contact resistance to a maximum of 20M©, ensuring stable signal transmission. Offering 6 - 100 PIN options, it fits various circuit requirements. Certified by IATF16949, ISO9001, etc., and RoHS-compliant, it also supports customization similar to 2.54Mm Idc Ejector Header. Standard packaging is plastic tray + carton, with flexible ODM and OEM services, and the classic black appearance can be customized as needed.

Attributes	Details
Application	Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc.
Soldering Type	SMT / Angled / Right-angle
Plastic Rows	Double-row
Rated Current	1A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Maximum 20M©
Contact Plating	Gold Flash; Nickel layer on base plate ≥50u"
Pin Count	6 - 100 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable according to requirements
Service Types	ODM and OEM services available; color can be customized flexibly
