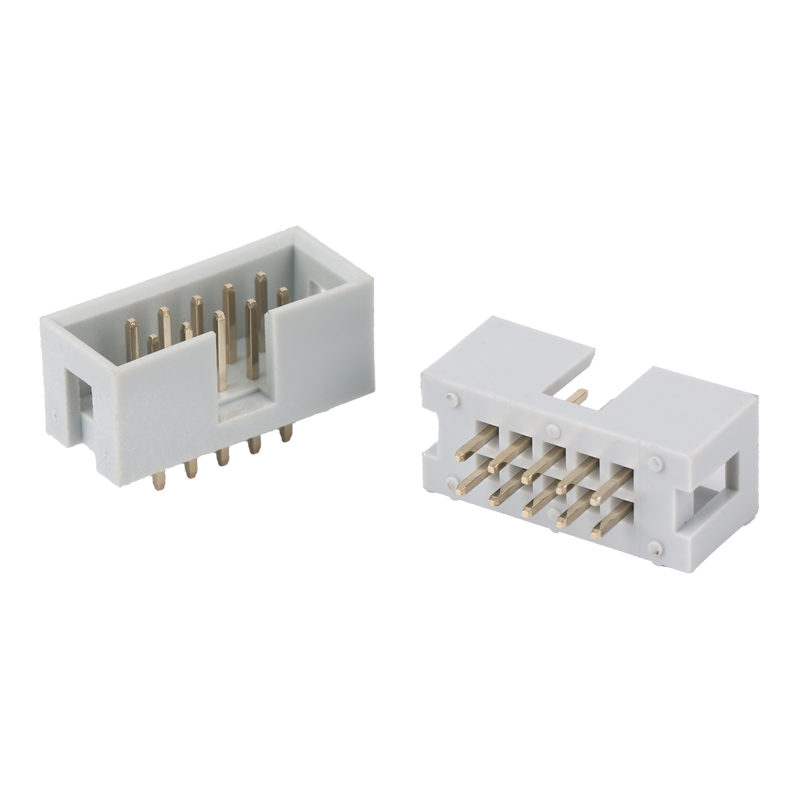

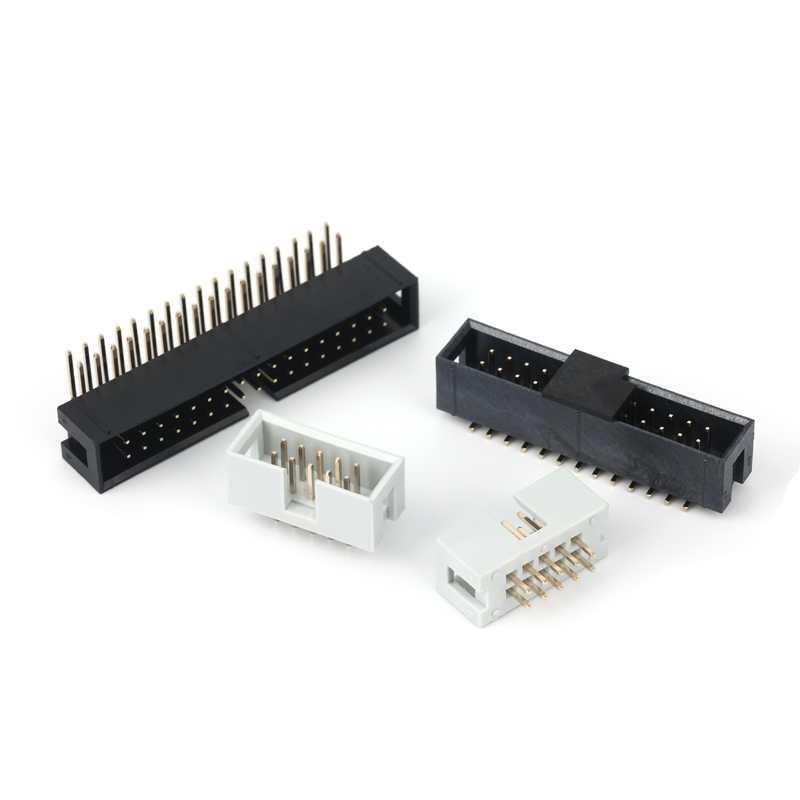

2.54mm 180 degree Ejector Header IDC TYPE

dgyzconn’s 2.54mm 180 degree Ejector Header Idc Type Connector is meticulously crafted for precise internal device connections, a reliable choice for electronics, industrial computers, and more. As part of the Ejector Header IDC TYPE Connector family, its unique 180-degree design, combined with a double-row structure, enables efficient connections even in space-constrained devices. With soldering types including SMT, angled, and right-angle, it perfectly adapts to both the quick installation of Press Fit Type Ejector Header and the stable requirements of Crimping-Type Ejector Header.



With a 3A/pin rated current, it operates stably from -40°C to +105°C. Terminals made of C2680 and C5191 materials, paired with black LCP insulators, along with Gold Flash plating and a ≥50u" nickel base, limit the contact resistance to a maximum of 20M©, ensuring stable signal transmission. Offering 6 - 64 PIN options, it meets diverse needs. Certified by IATF16949, ISO9001, etc., and RoHS-compliant, it supports customization similar to 2.54Mm Idc Ejector Header. Standard packaging is plastic tray + carton, with flexible ODM and OEM services, and customizable colors.

Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
