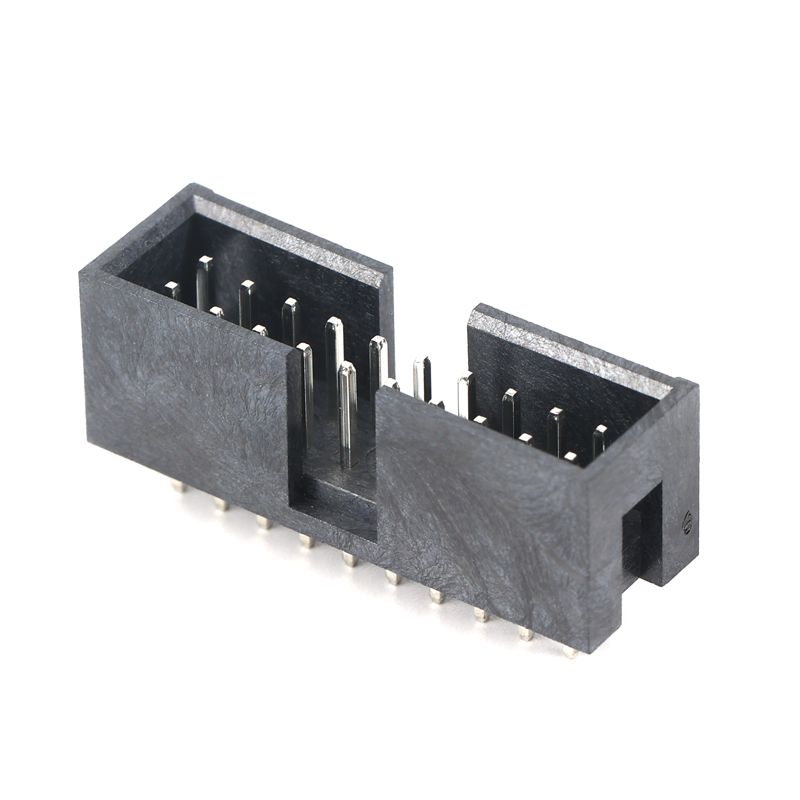

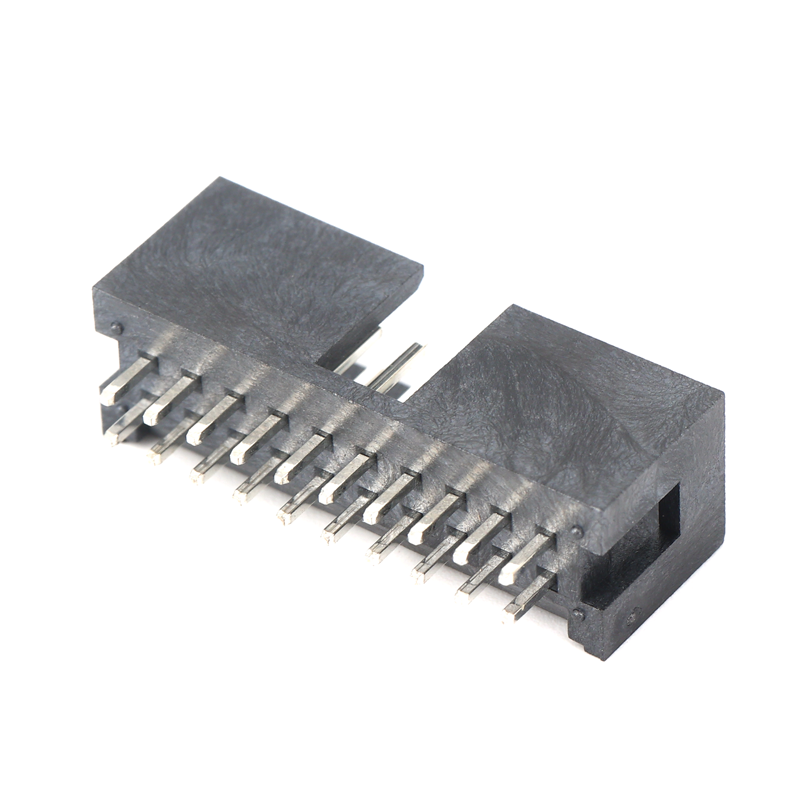

Two windows black Ejector Header IDC TYPE

With a 3A/pin rated current, it operates stably from -40°C to +105°C. Terminals made of C2680 and C5191, paired with black LCP (UL94V-0) insulators, along with Gold Flash plating and a ≥50u" nickel base, limit the contact resistance to a maximum of 20M©, ensuring efficient signal transmission. Offering 6 - 64 PIN options, it suits various circuit connection needs. Certified by IATF16949, ISO9001, etc., and RoHS-compliant, it also supports customization similar to 2.54Mm Idc Ejector Header. Standard packaging is plastic tray + carton, with flexible ODM and OEM services, and the classic black appearance can be adjusted as needed.

Attributes	Details
Application	Mainly for internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts, etc.
Soldering Type	SMT / Angled / Right-angle
Plastic Rows	Double-row
Rated Current	3A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature Range	230°C to +260°C
Contact Resistance	Maximum 20M©
Contact Plating	Gold Flash; Nickel layer on base plate ≥50u"
Pin Count	6 - 64 PIN
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA6T, PA9T, LCP
Packaging Details	Standard packaging: plastic tray + carton; customizable according to requirements
Service Types	ODM and OEM services available; color can be customized flexibly
