Female Header Three rows 90 degree triple bend

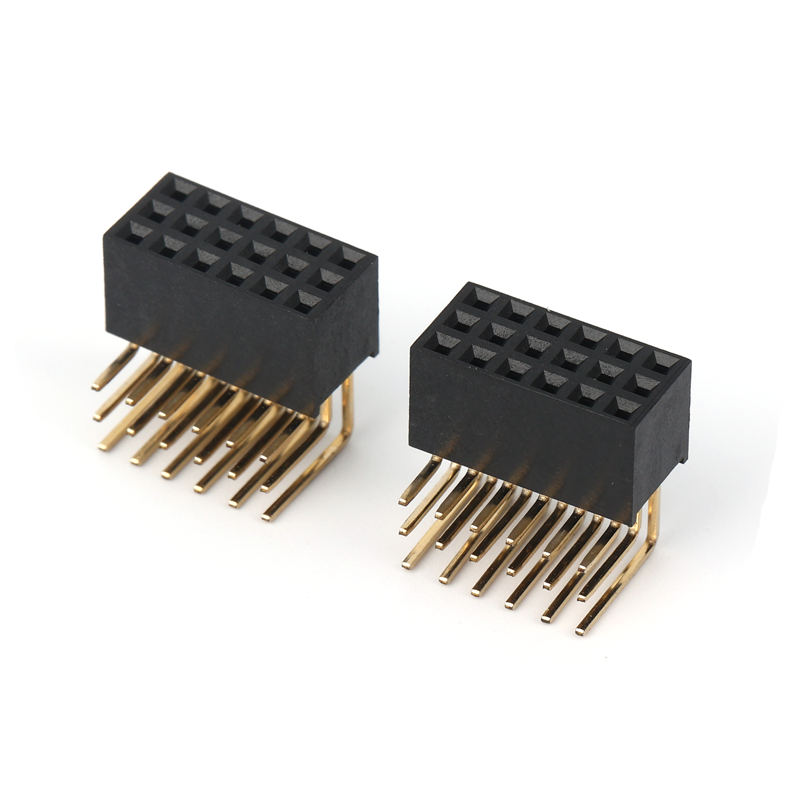

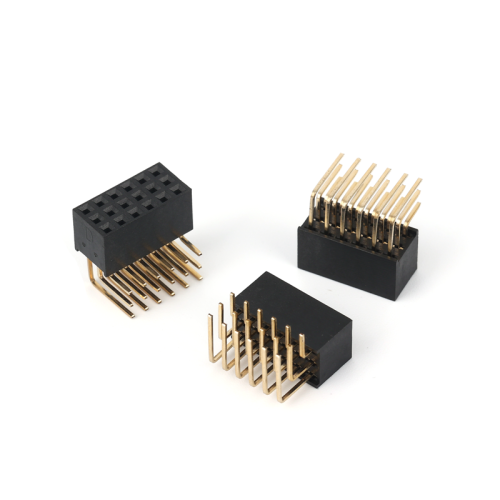

dgyzconn’s Female Header Three rows 90 degree triple bend is an innovative solution for complex internal device connections, designed for electronics, industrial computers, and communication systems. As a premium model in the Female Header series, its unique three-row 90-degree triple-bend structure breaks through traditional layout limitations, supporting flexible single/double-row configurations to perfect three-dimensional circuit designs, especially suitable for high-density Right Angle Female Header installations. Supporting diverse soldering types—SMT, straight, right-angle, J-type, U-type—it is compatible with 2.0mm Female Header specifications, easily meeting both automated patching and manual soldering needs.



Featuring C2680/C5191 high-conductivity copper terminals and black LCP (UL94V-0) insulators, the connector stably handles 2A/pin current from -40°C to +105°C, suitable for high-frequency signal transmission. The Gold Flash plating, combined with a ≥50u" nickel base, keeps contact resistance below 20mΩ, ensuring low-loss signal transmission through triple-bend paths. With 6-80 PIN options, it adapts to connections from precision instruments to complex industrial control systems and is highly compatible with Male And Female Header Pins and Female Header Pins. Certified by ISO9001, ISO14000, and RoHS-compliant, it comes in standard plastic tray + carton packaging, offering ODM/OEM customization with flexible color choices for innovative and reliable industrial-grade connectivity solutions worldwide.

Attributes	Details
Application	Internal device connections; suitable for electronics, industrial computers, communication systems, after-sales parts
Soldering Type	SMT / Straight / Right-angle / J-type / U-type
Plastic Rows	Single-row, Double-row
Rated Current	2A/pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Contact Resistance	Maximum 20mΩ
Contact Plating	Gold Flash; Nickel layer ≥50u"
Pin Count	6~80 PIN
Certifications	ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging Details	Standard: plastic tray + carton; customizable
Service Types	ODM/OEM; color customization
