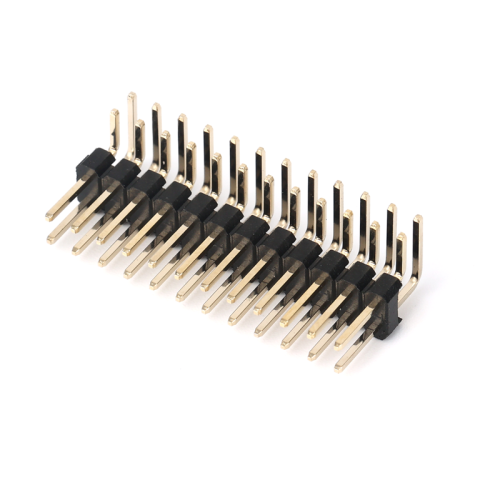

2.54mm Dual Row 90 Degree Pin Header

The 2.54mm Dual Row 90° Pin Header is a versatile connector extensively used for right-angle board-to-board connections in electronics manufacturing. This dual-row, 2.54 mm pitch header maximizes pin count while preserving a compact footprint, suitable for industrial automation, communication devices, and consumer electronics. The robust copper alloy pins plated with gold flash ensure low electrical resistance and corrosion resistance. Its LCP insulating housing complies with UL94V-0 standards, guaranteeing safety and reliability under demanding environmental conditions.



As a leading manufacturer of Pin Header Connectors, dgyzconn offers tailored solutions for the 2.54 mm dual row headers including plating options, pin counts from 6 to 80 pins, and customized packaging. Our full range of ODM and OEM services meets diverse industry standards and client specifications. With IATF16949 and ISO certifications, we guarantee consistent quality, flexible order quantities, and efficient logistics, positioning dgyzconn as your reliable partner for Pcb Board Connector and Pin Connector procurement.

Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
