2.54mm Dual Row Pin Header for PCB

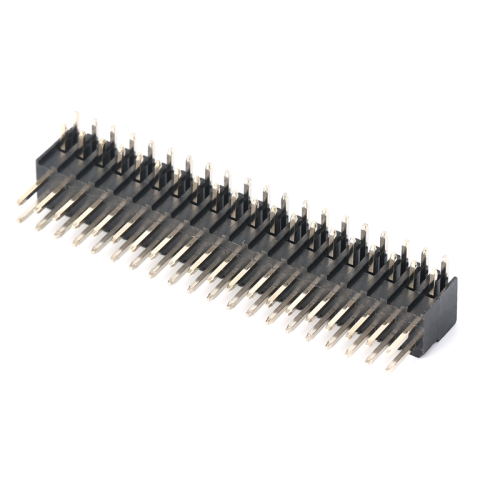

The 2.54mm Dual Row 90° Pin Header with 7.5mm Height offers an elevated profile designed to accommodate specific spacing requirements in complex PCB assemblies. This connector provides a reliable right-angle interface with a standard 2.54 mm pitch, suitable for equipment in telecommunications, industrial control, and computing. The extended height improves clearance for cable routing or additional components, while maintaining excellent electrical performance thanks to gold flash-plated copper alloy pins. The durable LCP housing ensures flame resistance and mechanical integrity during assembly and operation.



dgyzconn excels in producing customized Pin Header 2.54mm Pitch solutions with a range of mechanical specifications including height variations like the 7.5mm dual row header. We support flexible pin counts, plating finishes, and packaging options, all under rigorous quality management systems including ISO9001 and IATF16949. Our ODM and OEM capabilities empower customers to optimize connector solutions for their unique applications. Trust dgyzconn for consistent quality and responsive service in your Pin Header Connector and Pcb Board Connector sourcing.



Item	Description
Application	Primarily used for internal device connections
Suitable Industries	Electronics, Industrial PCs, Communication Systems, Aftermarket Components
Mounting Type	SMT / Straight / Right Angle / J-Type / U-Type
Rows of Plastic	Single Row / Double Row
Rated Current	3A per pin
Operating Temperature	-40°C to +105°C
Terminal Material	C2680; C5191
Insulator Material	LCP (UL94V-0), Black
Processing Temperature	230°C to 260°C
Contact Resistance	Max 20mΩ
Contact Plating	Gold Flash / Tin Plating
Base Nickel Layer	≥50μ"
Number of Contacts	6–80 PINs
Certifications	IATF16949, ISO9001, ISO14000
RoHS Compliance	Yes
Materials	PBT, PA46, PA6T, PA9T, LCP
Packaging	Standard: Plastic Tray + Carton (customizable on request)
Service Type	ODM & OEM services available; flexible color customization supported
